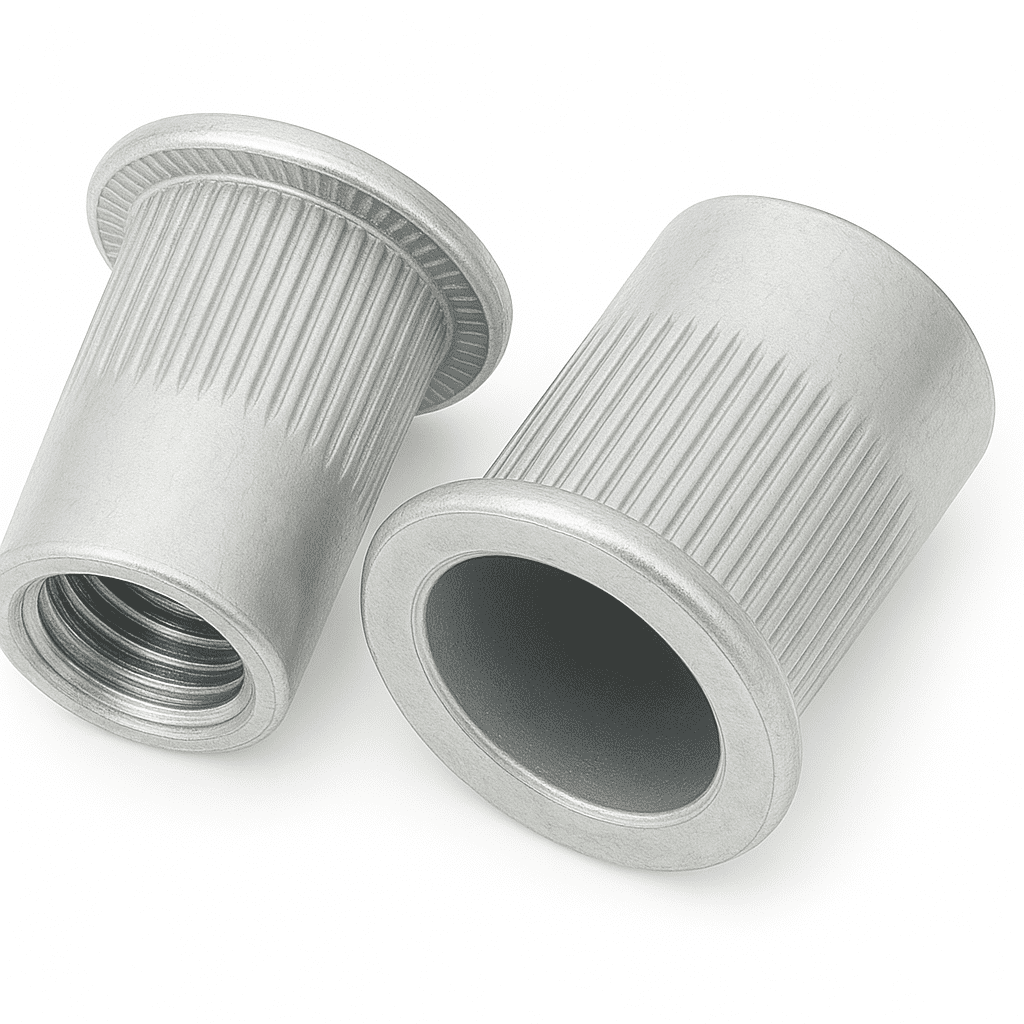

M6 x 19.5mm Flat Head, Round Knurled Open End Body Rivet Nuts, Aluminium Grip range 2.5 – 4.5mm
£0.06 - £0.09
Excluding VAT
SKU: 51083.060.002
Internal thread size: M6 x 1.0mm pitch
Drill/hole diameter: 9.0mm
Body Diameter: 8.9mm
Head Diameter: 12.5mm
Head Height: 1.5mm
Available
Aluminium
Sizes shown are thread size x original length
For best results, hole diameter should be 0.1mm larger than rivet nut body
Grip range: Minimum and maximum material thickness into which the nut can be set It provides a big bearing area that strengthens the hole and prevents traction and pulling failures.It an also be used as a separator.
