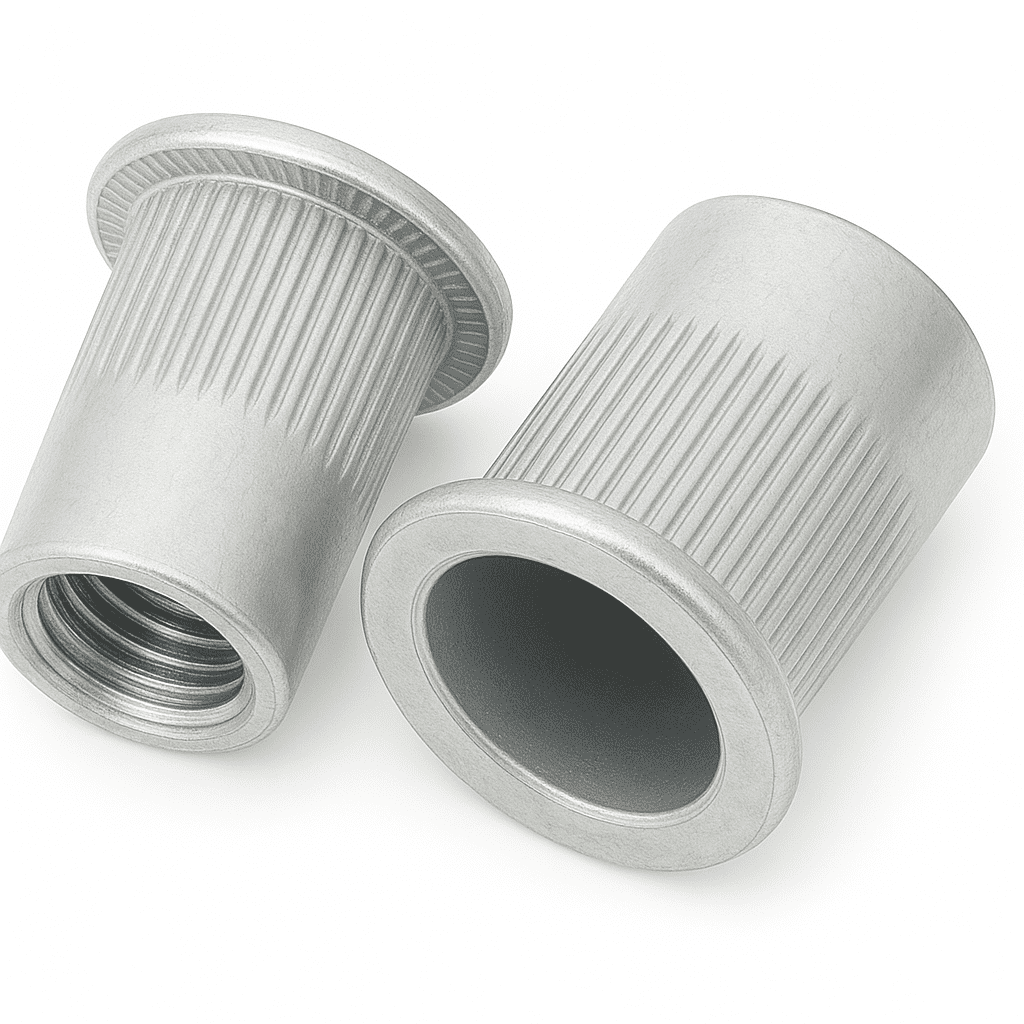

M5 x 20.0mm Flat Head, Round Knurled Open End Body Rivet Nuts, Aluminium Grip range 5.5 – 8.0mm
£0.07 - £0.08
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 51083.050.003
Internal thread size: M5 x 0.8mm pitch
Drill/hole diameter: 7.0mm
Body Diameter: 6.9mm
Head Diameter: 9.5mm
Head Height: 1.0mm
Available
Aluminium
Sizes shown are thread size x original length
For best results, hole diameter should be 0.1mm larger than rivet nut body
Grip range: Minimum and maximum material thickness into which the nut can be set It provides a big bearing area that strengthens the hole and prevents traction and pulling failures.It an also be used as a separator.
