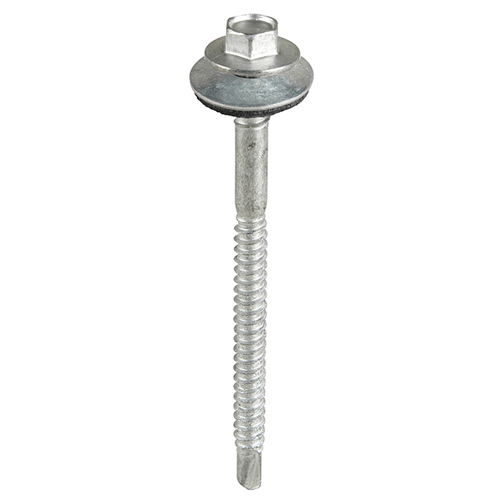

5.5/6.3 x 98mm Composite Panel Screws – Light Section Steel with 16mm EPDM Washer – Self-Drilling – (Exterior – Silver Organic)
£0.17 - £0.21
Excluding VAT
SKU: 60148.505.098
Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
• Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt spray
Available
| MDT (mm) | 5 |
| Effective Thread L (mm) | 41 |
| Size (mm) | 5.5/6.3 x 98 |
| Substrates | Composite Panel |
| Point Type | Self-Drilling No.3 |
| Corrosion Rating (1-5) | 3 – Urban & industrial areas with a low salt atmosphere |
| Approval | BS EN 10666 (DIN 7504) |
| EPDM Washer (mm) | 16 |
| Head H (mm) | 5.7 |
| Min. – Max. PT (mm) | 48 – 78 |
| Thread Type | Dual 60° Self-Tapping |
| Head Type | Hex |
| Finish | Exterior (Silver Organic) |
| Socket Size (mm) | 8 |
| Drill Tip L (mm) | 8 |
| Pack Type | Box |
| FW Ø (mm) | 12 |
| Material | Case & Core Hardened Carbon Steel |
| Thread Coverage | Partially Threaded |
