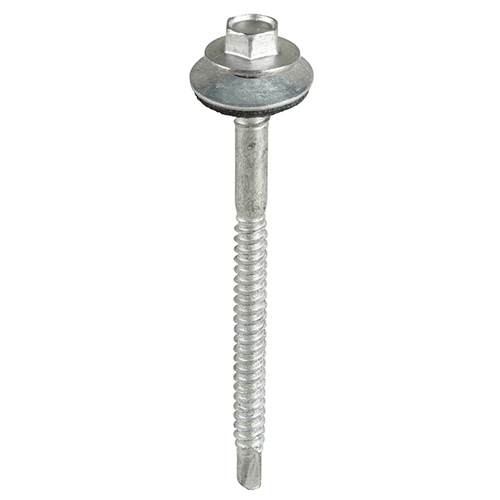

5.5/6.3 x 82mm Composite Panel Screws – Light Section Steel with 16mm EPDM Washer – Self-Drilling – (Exterior – Silver Organic)
£0.14 - £0.18
Excluding VAT
SKU: 60148.505.603
Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
• Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt spray
Available
Substrates | Composite Panel |
MDT (mm) | 5 |
Drill Tip L (mm) | 8 |
Socket Size (mm) | 8 |
Effective Thread L (mm) | 41 |
Corrosion Rating (1-5) | 3 – Urban & industrial areas with a low salt atmosphere |
EPDM Washer (mm) | 16 |
Head H (mm) | 5.7 |
Finish | Exterior (Silver Organic) |
Approval | BS EN 10666 (DIN 7504) |
Point Type | Self-Drilling No.3 |
Head Type | Hex |
Size (mm) | 5.5/6.3 x 82 |
Pack Qty | 100 |
Thread Type | Dual 60° Self-Tapping |
FW Ø (mm) | 12 |
Material | Case & Core Hardened Carbon Steel |
Thread Coverage | Partially Threaded |
Min. – Max. PT (mm) | 32 – 62 |
