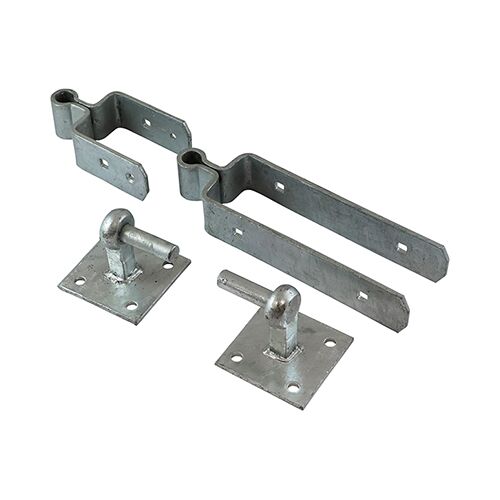

450mm Double Strap Hinge Set with Hook on Plate – Hot Dipped Galvanised
£29.40 - £36.75
Excluding VAT
SKU: DSFH450G
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Available
Product Code: DSFH450G
| To Suit Gate T (mm) | 75 |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 610 |
| Pack Type | Plain Bag |
| To Suit Gate W (mm) | 1200 – 2700 |
| Packs per Carton | 4 |
| To Suit Gate T (inch) | 3 |
| Nut Size (mm) | M10 |
| To Suit Gate W (ft) | 4 – 9 |
| No. of Nuts | 4 |
| Pin Ø (inch) | 3⁄4 |
| MOQ Increment | 1 |
| Top Strap L (inch) | 18 |
| MOQ | 1 |
| Finish | Hot Dipped Galvanised |
| Nut Type | Hex Full |
| Top Strap L (mm) | 450 |
| Washer Type | Form A |
| Bottom Strap L (mm) | 150 |
| Coach Screw Size (mm) | M10 x 65 |
| Washer Size (mm) | M10 |
| No. of Washers | 4 |
| Pack Weight (kg) | 5.65 |
| Bottom Strap L (inch) | 6 |
| Strap T (mm) | 6 |
| Carriage Bolt Size (mm) | M10 x 95 |
| No. of Coach Screws | 8 |
| Material | Carbon Steel |
| Pin Ø (mm) | 19 |
| No. of Carriage Bolts | 4 |
| Hook Plate Size L x W (mm) | 100 x 100 |
