600mm Double Strap Hinge Set with Hook on Plate – Hot Dipped Galvanised
£33.00 - £41.25
Excluding VAT
SKU: DSFH600G

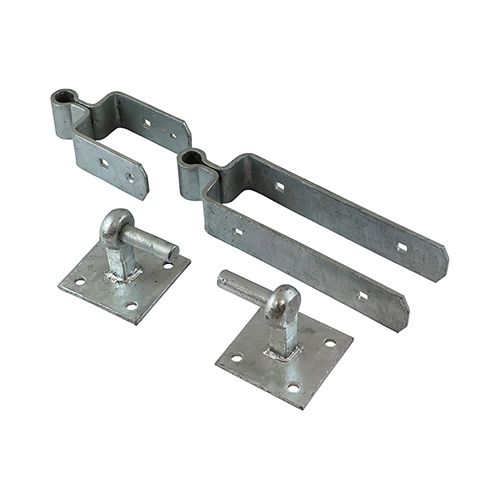

Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Available
Product Code: DSFH600G
| Pack Type | Plain Bag |
| To Suit Gate T (inch) | 3 |
| MOQ | 1 |
| Top Strap L (inch) | 24 |
| Strap T (mm) | 6 |
| To Suit Gate W (ft) | 9 – 12 |
| MOQ Increment | 1 |
| No. of Nuts | 4 |
| Nut Size (mm) | M10 |
| Pin Ø (inch) | 3⁄4 |
| Pack Weight (kg) | 6.42 |
| To Suit Gate T (mm) | 75 |
| Finish | Hot Dipped Galvanised |
| Top Strap L (mm) | 600 |
| Washer Type | Form A |
| Washer Size (mm) | M10 |
| Nut Type | Hex Full |
| Coach Screw Size (mm) | M10 x 65 |
| Bottom Strap L (inch) | 6 |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 762 |
| No. of Washers | 4 |
| Bottom Strap L (mm) | 150 |
| Carriage Bolt Size (mm) | M10 x 95 |
| To Suit Gate W (mm) | 2700 – 3600 |
| No. of Coach Screws | 8 |
| Packs per Carton | 4 |
| Pin Ø (mm) | 19 |
| Material | Carbon Steel |
| Pack Qty | 1 |
| Hook Plate Size L x W (mm) | 100 x 100 |
| No. of Carriage Bolts | 4 |
