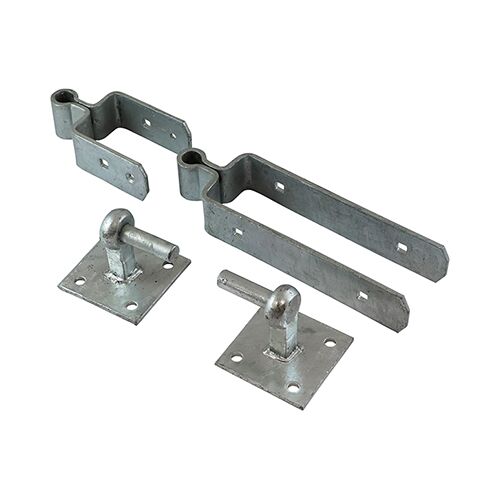

300mm Double Strap Hinge Set with Hook on Plate – Hot Dipped Galvanised
£25.50 - £31.88
Excluding VAT
SKU: DSFH300G
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Available
Product Code: DSFH300G
| To Suit Gate T (mm) | 75 |
| No. of Coach Screws | 8 |
| Pack Qty | 1 |
| No. of Carriage Bolts | 3 |
| Packs per Carton | 4 |
| Carriage Bolt Size (mm) | M10 x 95 |
| Pack Type | Plain Bag |
| No. of Nuts | 3 |
| To Suit Gate T (inch) | 3 |
| Washer Type | Form A |
| To Suit Gate W (mm) | 900 – 1200 |
| Bottom Strap L (mm) | 150 |
| MOQ | 1 |
| No. of Washers | 3 |
| MOQ Increment | 1 |
| Nut Size (mm) | M10 |
| Pin Ø (inch) | 3⁄4 |
| Top Strap L (mm) | 300 |
| Material | Carbon Steel |
| Bottom Strap L (inch) | 6 |
| Finish | Hot Dipped Galvanised |
| Nut Type | Hex Full |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 457 |
| To Suit Gate W (ft) | 3 – 4 |
| Washer Size (mm) | M10 |
| Coach Screw Size (mm) | M10 x 65 |
| Strap T (mm) | 6 |
| Top Strap L (inch) | 12 |
| Hook Plate Size L x W (mm) | 100 x 100 |
| Pin Ø (mm) | 19 |
| Pack Weight (kg) | 4.96 |
