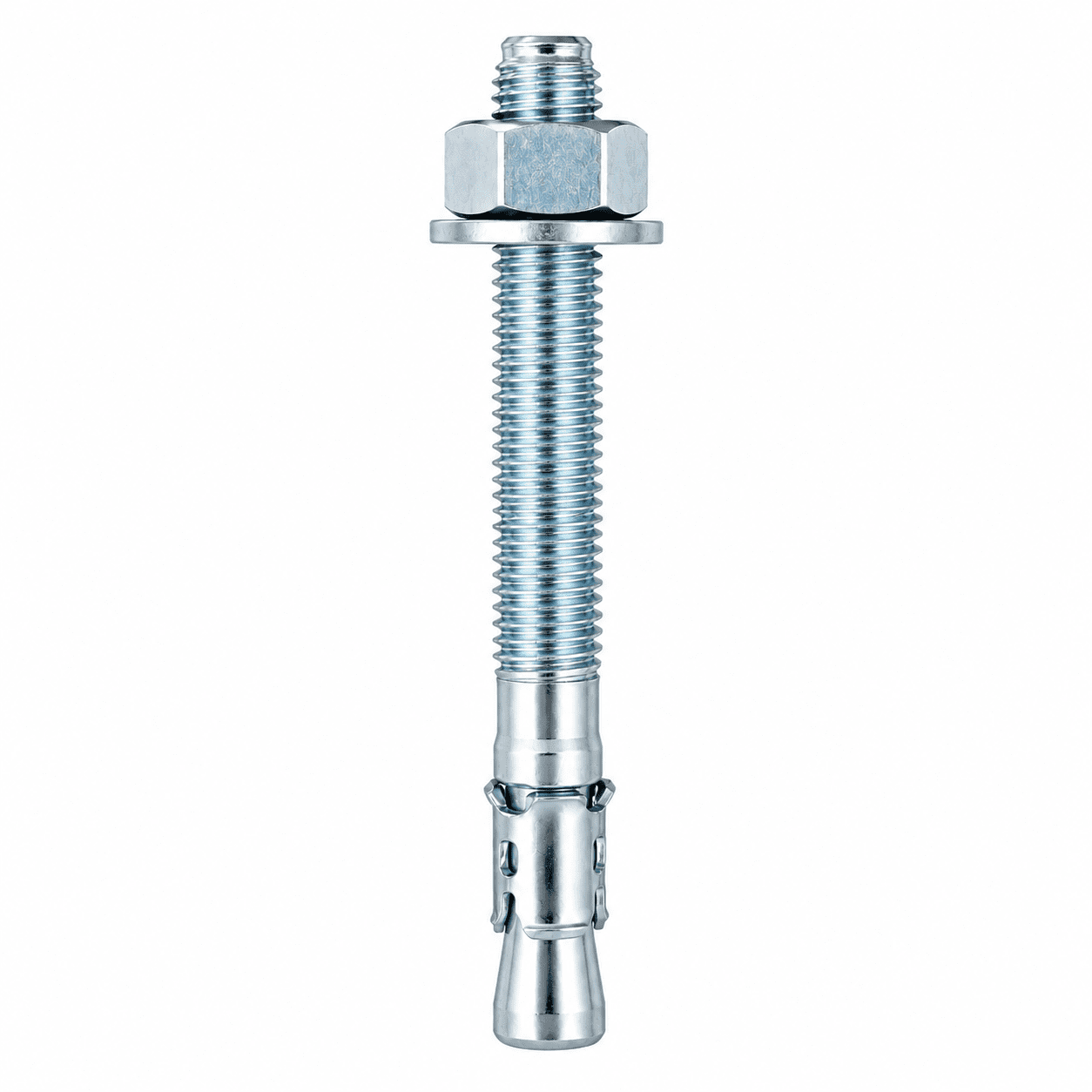

M6 x 45mm Through Bolt – Zinc Plated with Hex Full Nuts & Form A Washers
£0.11 - £0.13
Excluding VAT
SKU: 40108.060.045
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
• Chamfered head design to prevent damage to thread during installation
• Zinc plated and passivated (3-5 microns)
• Manufactured from cold formed carbon steel (grade 5.8)
• Special expansion clip for rapid installation
Available
| Finish | Zinc |
| Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
| Included Items | M8 Hex Full Nuts & Form A Washers |
| Nut Type | Hex Full |
| Nut Size (mm) | M6 |
| Thread Ø x L (mm) | M6 x 45 |
| Thread Ø (mm) | M6 |
| DIN | DIN 125-A, DIN 934 |
| Fixture Hole Size Ø (mm) | 7 |
| Material | Carbon Steel |
| Nut Socket Size (mm) | 11 |
| Thread Type | Metric |
| Head Type | Chamfered |
| Washer Type | Form A |
| Washer Size (mm) | M6 |
| Substrates | Concrete |
