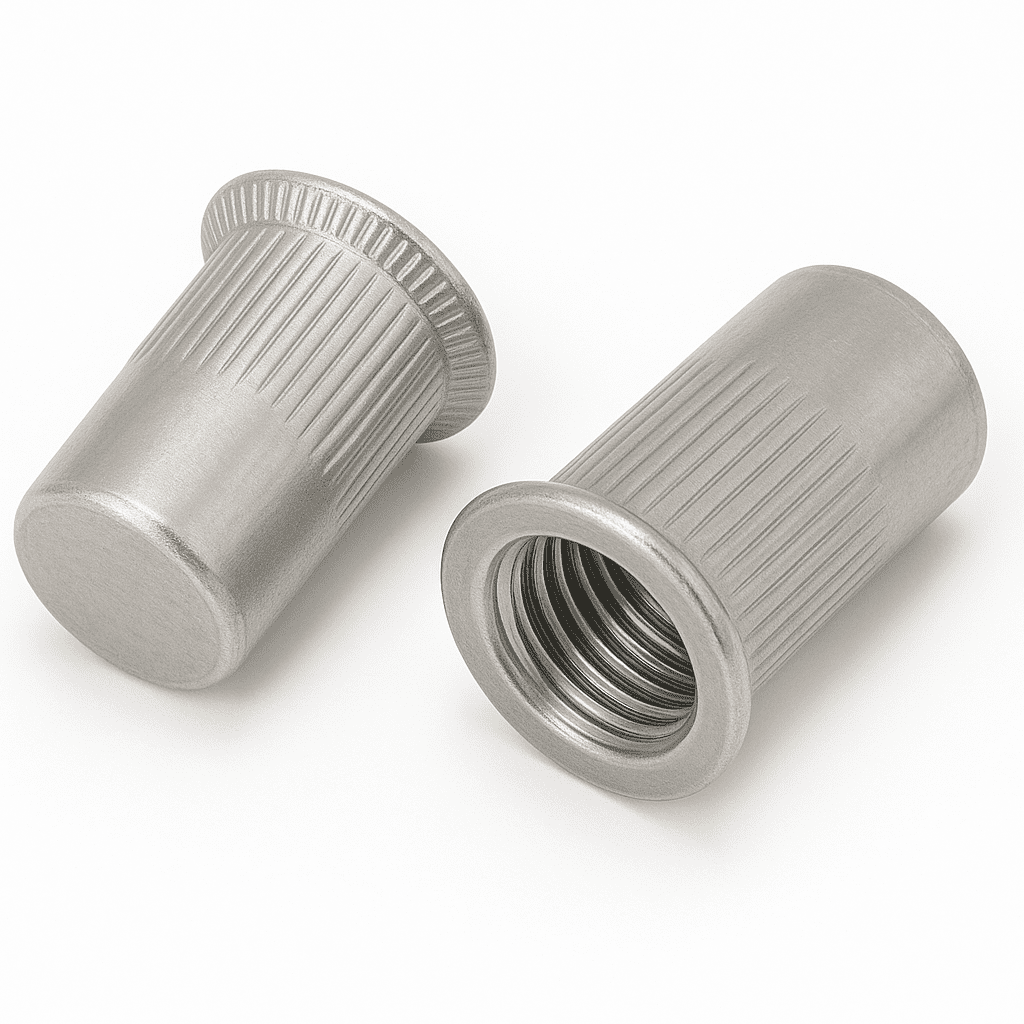

M10 x 30.0mm A2 Stainless Steel Grooved Countersunk Head, Round Closed End Rivet Nut, Grip range 1.50 – 5.0mm, Hole Size 13.0mm
£0.72 - £1.07
Excluding VAT
SKU: 54037.100.001
Grip Range: 1.50 – 5.0mm
Internal thread size: M10 x 21.0mm pitch
Drill/hole diameter: 13.0mm
Body Diameter: .12.9mm
Head Diameter: 15.5mm
Head Height: 1.5mm
Available
Stainless steel
Sizes are displayed as thread size x original length.
The hole’s diameter should be 0.1mm bigger than the rivet nut’s body for the best results.
Grip range: The smallest and largest material thickness that the nut can be inserted.
