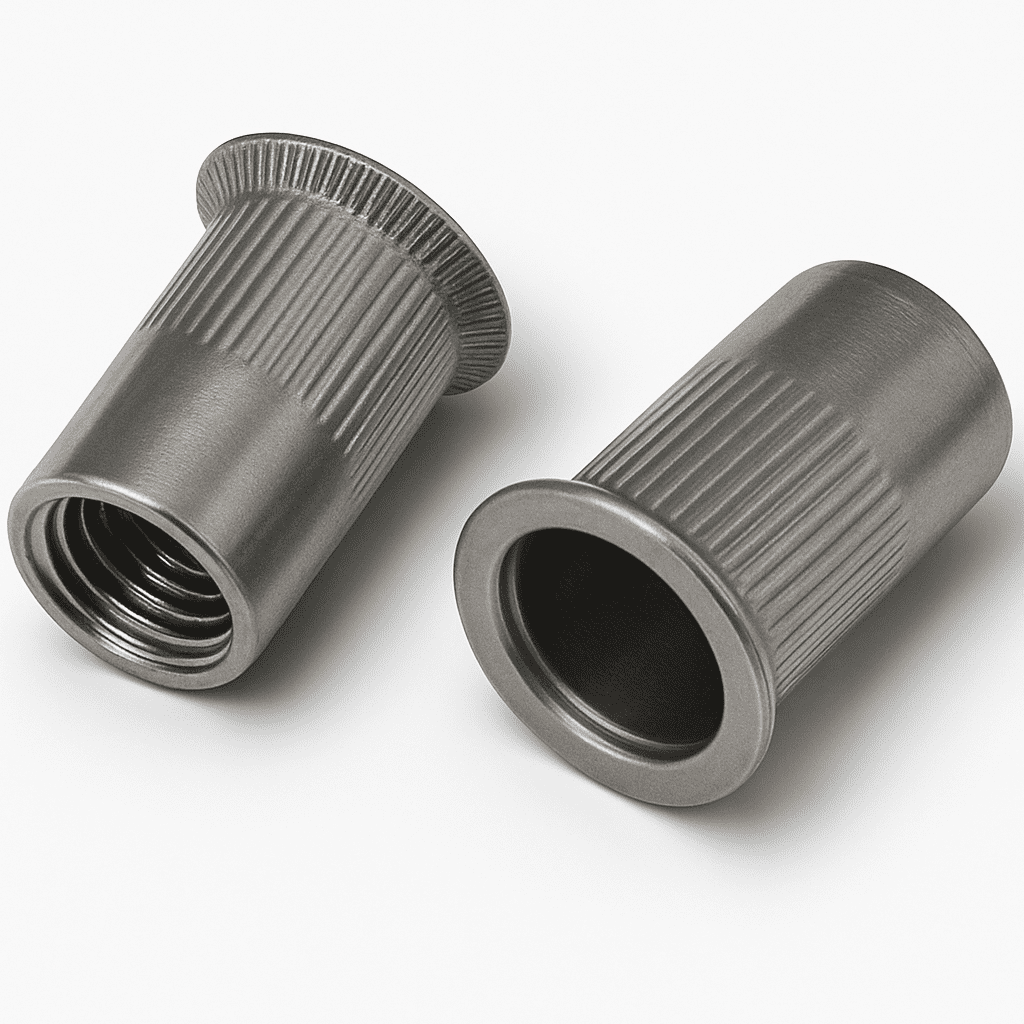

M6 x 15.5mm A4 Stainless Steel Grooved Countersunk Head, Round Open End Rivet Nut, Grip range 0.5 – 2.5mm, Hole Size 9.0mm
£0.29 - £0.43
Excluding VAT
SKU: 54038.600.001
Grip Range: 0.5 – 2.5mm
Internal thread size: M6 x 1.0mm pitch
Drill/hole diameter: 9.0mm
Body Diameter: .8.9mm
Head Diameter: 11.5mm
Head Height: 1.5mm
Available
Steel, stainless
Sizes are displayed as thread size x original length.
The hole’s diameter should be 0.1mm bigger than the rivet nut’s body for the best results.
Grip range: The minimum and greatest material thickness that the nut can be inserted.
