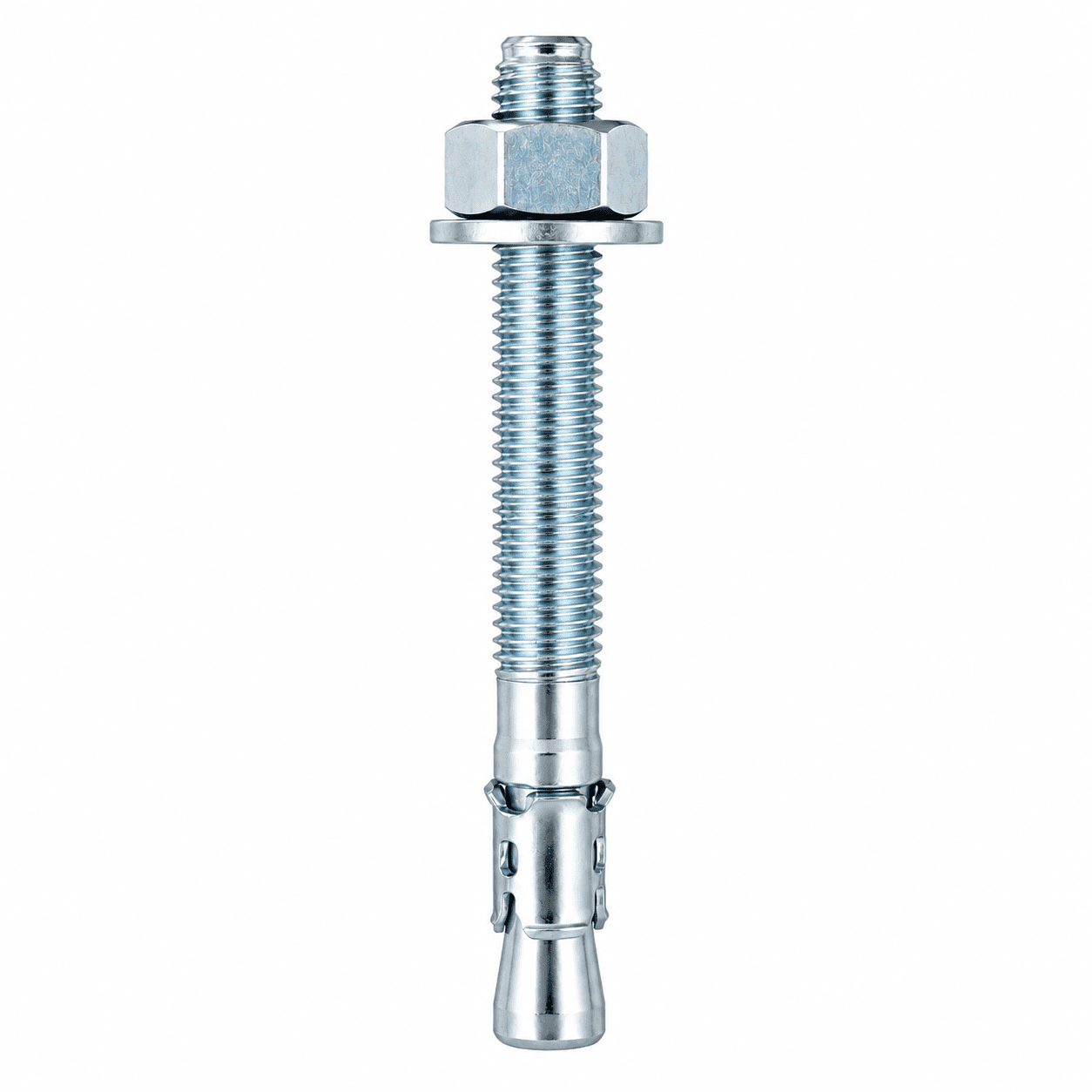

M20 x 130mm Throughbolts – Zinc Plated with Hex Full Nuts & Form A Washers
£2.27 - £2.52
Excluding VAT
SKU: 40108.200.130
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
• Chamfered head design to prevent damage to thread during installation
• Zinc plated and passivated (3-5 microns)
• Manufactured from cold formed carbon steel (grade 5.8)
• Special expansion clip for rapid installation
Available
Product Code: 20130TB
Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments | |
Included Items | M20 Hex Full Nuts & Form A Washers | |
MOQ | 1 | |
Washer Type | Form A | |
Pack Qty | 10 | |
MFT (mm) | 5 | |
Pack Weight (kg) | 3.464 | |
Nut Socket Size (mm) | 30 | |
Nut Size (mm) | M20 | |
Fixture Hole Size Ø (mm) | 18 | |
Nut Type | Hex Full | |
Thread Ø x L (mm) | M20 x 130 | |
Finish | Zinc | |
Washer Size (mm) |
| |
Thread Type | Metric | |
DIN | DIN 125-A, DIN 934 | |
Material | Carbon Steel | |
Head Type | Chamfered | |
Substrates | Concrete | |
Thread Ø (mm) | M20 | |
