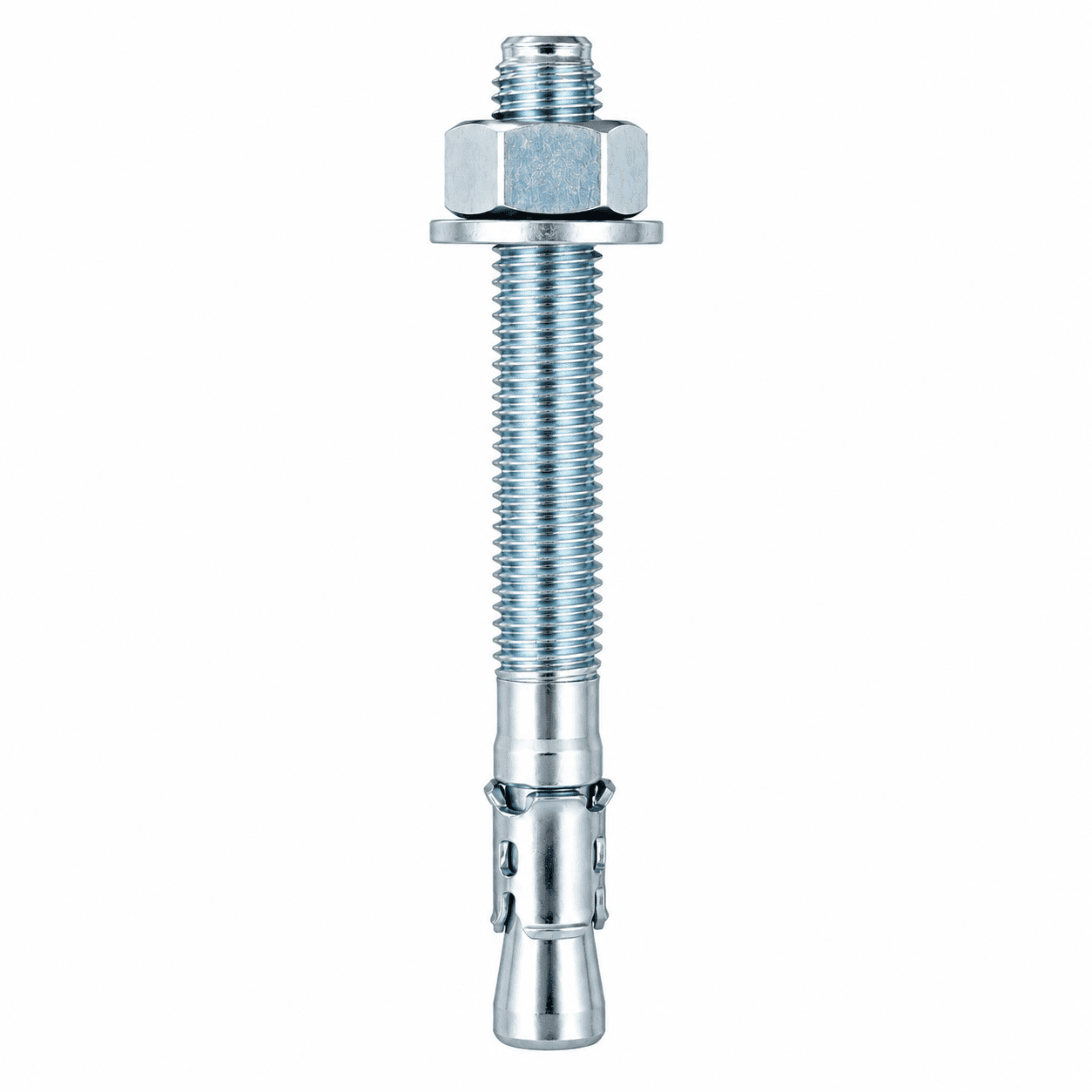

M16 x 150mm Throughbolts – Zinc Plated with Hex Full Nuts & Form A Washers
£1.46 - £1.62
Excluding VAT
SKU: 40108.160.150
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
• Chamfered head design to prevent damage to thread during installation
• Zinc plated and passivated (3-5 microns)
• Manufactured from cold formed carbon steel (grade 5.8)
• Special expansion clip for rapid installation
Available
Product Code: 16150TB
| Nut Type | Hex Full |
| Nut Size (mm) | M16 |
| MFT (mm) | 150 |
| Thread Ø (mm) | M16 |
| Pack Weight (kg) | 3.61 |
| Thread Type | Metric |
| Nut Socket Size (mm) | 24 |
| Included Items | M16 Hex Full Nuts & Form A Washers |
| Pack Qty | 15 |
| Washer Type | Form A |
| Head Type | Chamfered |
| Fixture Hole Size Ø (mm) | 18 |
| MOQ | 1 |
| Finish | Zinc |
| DIN | DIN 125-A, DIN 934 |
| Thread Ø x L (mm) | M16 x 150 |
| Material | Carbon Steel |
| Washer Size (mm) | M16 x 30 |
| Substrates | Concrete |
| Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
