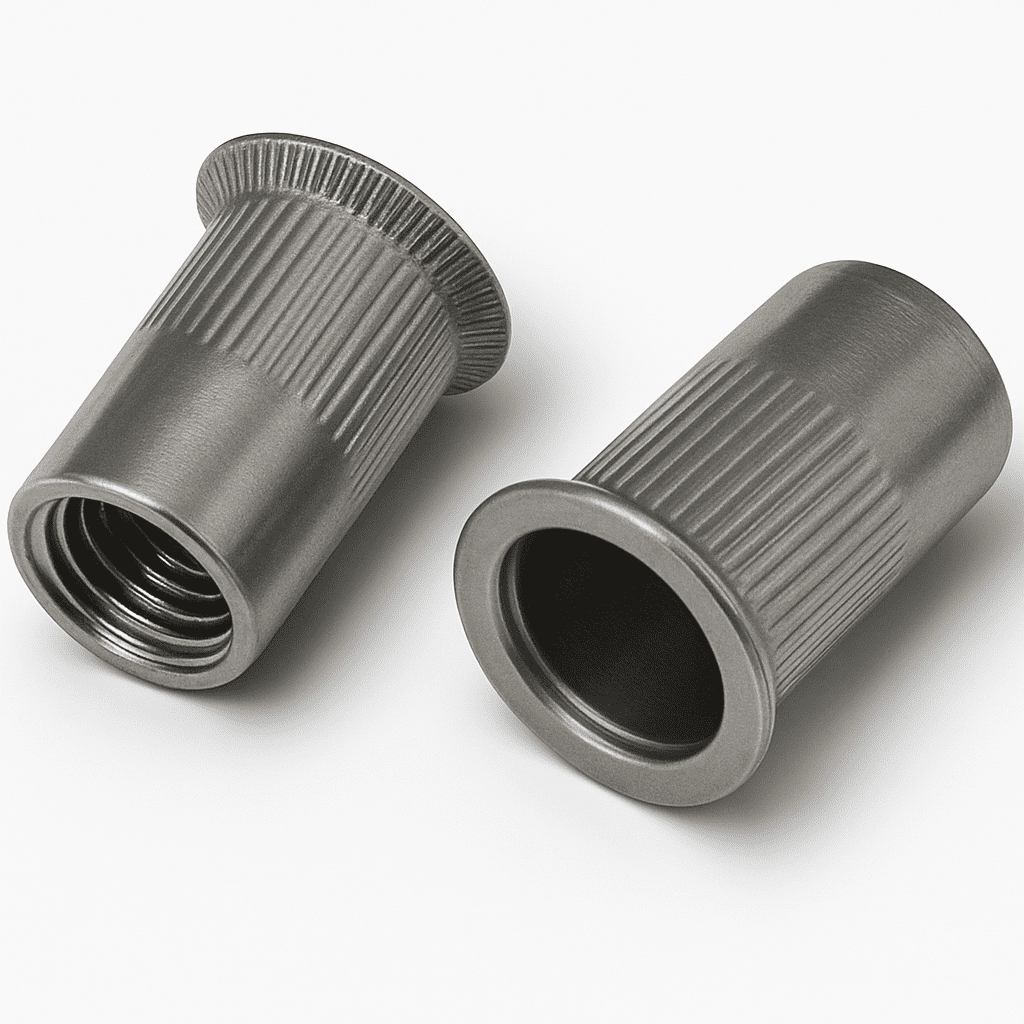

M12 x 27.5mm A2 Stainless Steel Grooved Countersunk Head, Round Open End Rivet Nut, Grip range 4.5 – 7.5mm, Hole Size 16.0mm
£0.74 - £1.10
Excluding VAT
SKU: 54039.120.002
Grip Range: 4.5 – 7.5mm
Internal thread size: M12 x 1.75mm pitch
Drill/hole diameter: 16.0mm
Body Diameter: .15.9mm
Head Diameter: 19.0mm
Head Height: 1.5mm
Available
stainless, Steel
Sizes are displayed as thread size x original length.
The hole’s diameter should be 0.1mm bigger than the rivet nut’s body for the best results.
Grip range: The minimum and greatest material thickness that the nut can be inserted.
