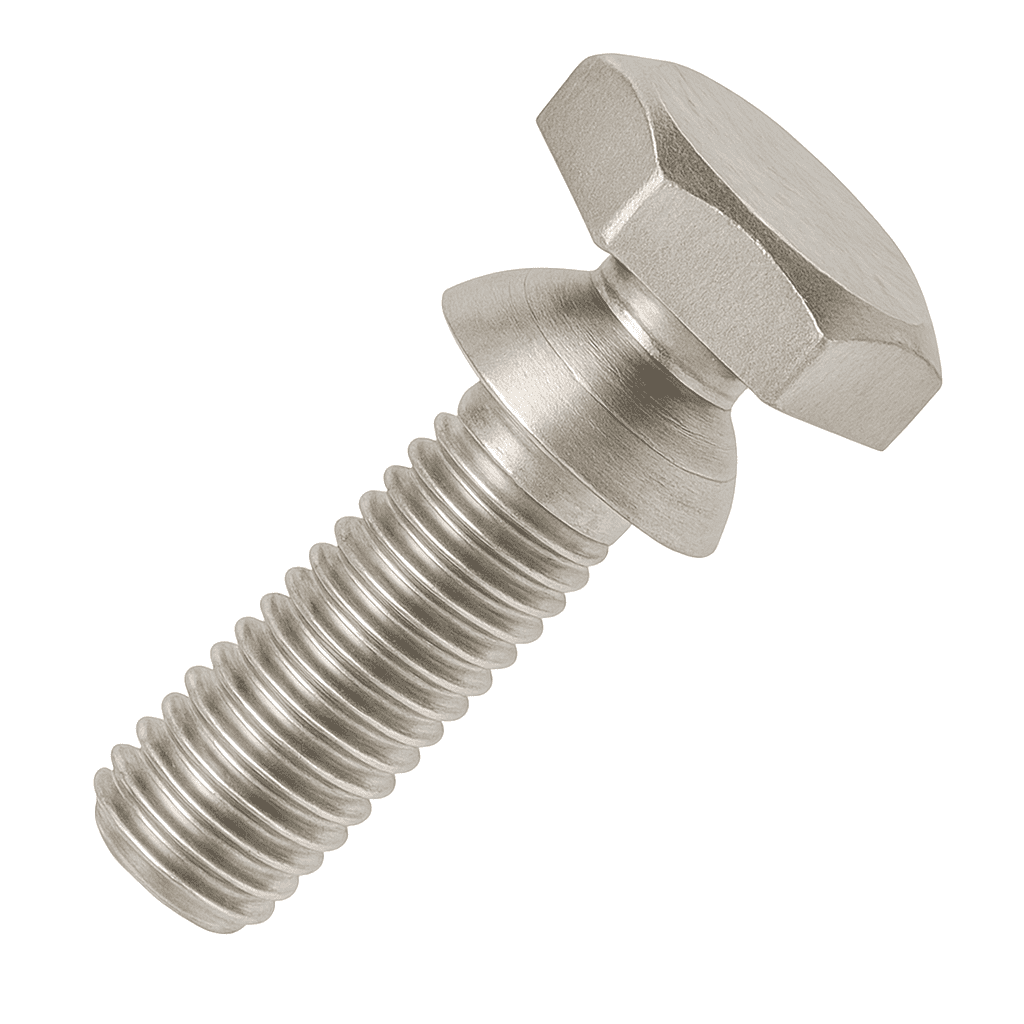

M10 x 50mm, Button / Hexagon Head A2 Stainless Steel Anti theft temper resistant Shear Bolt
£4.77 - £5.30
Excluding VAT
SKU: 15101.100.050
The Shear System is a high security permanent fastener.
Both the Shear Bolt and Shear Nut have a hexagon part which shears off at a predetermined torque. Installed using standard hex socket or spanner. Once installed, the Shear Bolt leaves a tamper resistant head.
- Shear Bolts can also be manufactured to order in most common materials and finishes
- A2 Stainless Steel, Shear Bolts
- The shear system is high security permanent fastener.
- These Shear bolts have hexagon part which shear off at predetermined torque. Installed using standard hex socket or spanner. Once installed, the shear bolts leave a tamper resistant head.
You can also find full range of security fasteners and all types of Nuts
Available

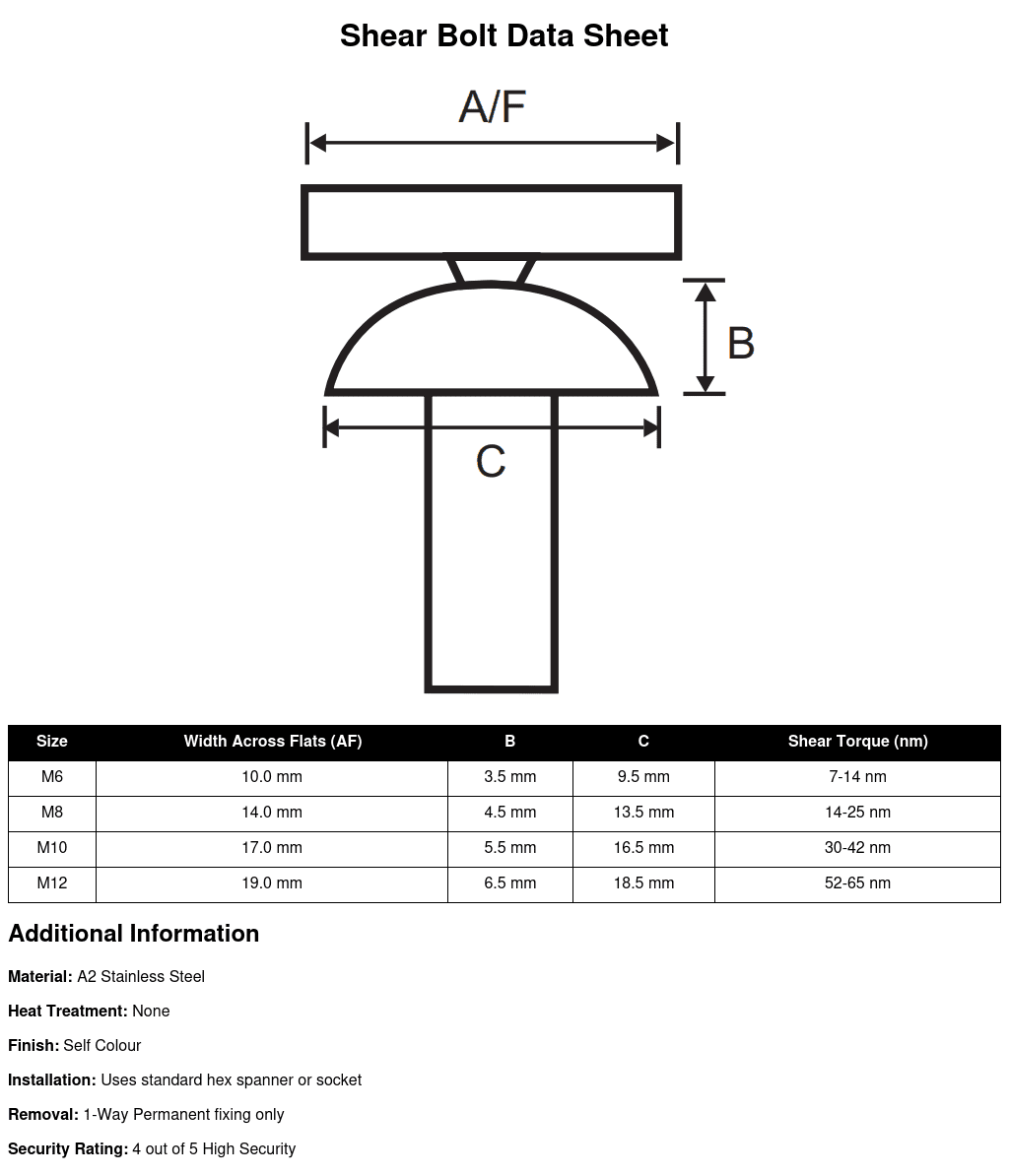

Shear Bolt Data Sheet
| Size | Width Across Flats (AF) | B | C | Shear Torque (nm) |
|---|---|---|---|---|
| M6 | 10.0 mm | 3.5 mm | 9.5 mm | 7-14 nm |
| M8 | 14.0 mm | 4.5 mm | 13.5 mm | 14-25 nm |
| M10 | 17.0 mm | 5.5 mm | 16.5 mm | 30-42 nm |
| M12 | 19.0 mm | 6.5 mm | 18.5 mm | 52-65 nm |
Additional Information
Material: A2 Stainless Steel
Heat Treatment: None
Finish: Self Colour
Installation: Uses standard hex spanner or socket
Removal: 1-Way Permanent fixing only
Security Rating: 4 out of 5 High Security
