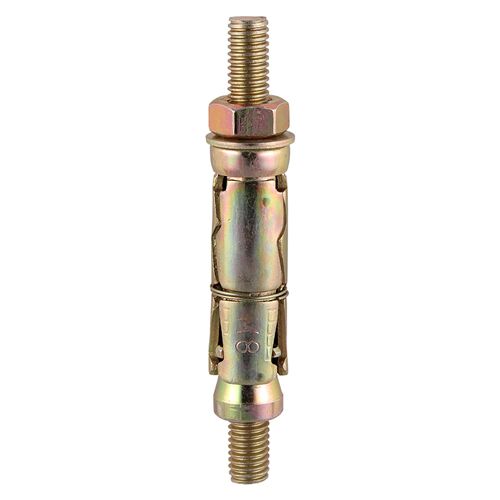

M10 x 130 Shield Anchor Projecting Bolts – Yellow Zinc
£1.01 - £1.27
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 40128.100.131
The projecting stud allows the fixture to be positioned into place and then fastened secure.
• Compatible with most types of metric threaded components
• A three segmented expansion anchor used in concrete, brick or stone
• Torque controlled
• Stud grade 5.8
Which fixing is best for me?
Available
Product Code: 1060PSHB
| Finish | Zinc & Yellow | |
| Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments | |
| Stud L (mm) | 130 | |
| Point Type | B Point | |
| Thread Ø x L (mm) | M10 x 130 | |
| Thread Ø (mm) | M10 | |
| DIN | DIN 125-A, DIN 934 | |
| Fixture Hole Size Ø (mm) | 12 | |
| Material | Carbon Steel | |
| Nut Socket Size (mm) | 17 | |
| MFT (mm) | 60 | |
| Thread Type | Metric | |
| Shield L (mm) | 60 | |
| Substrates |
|
|
