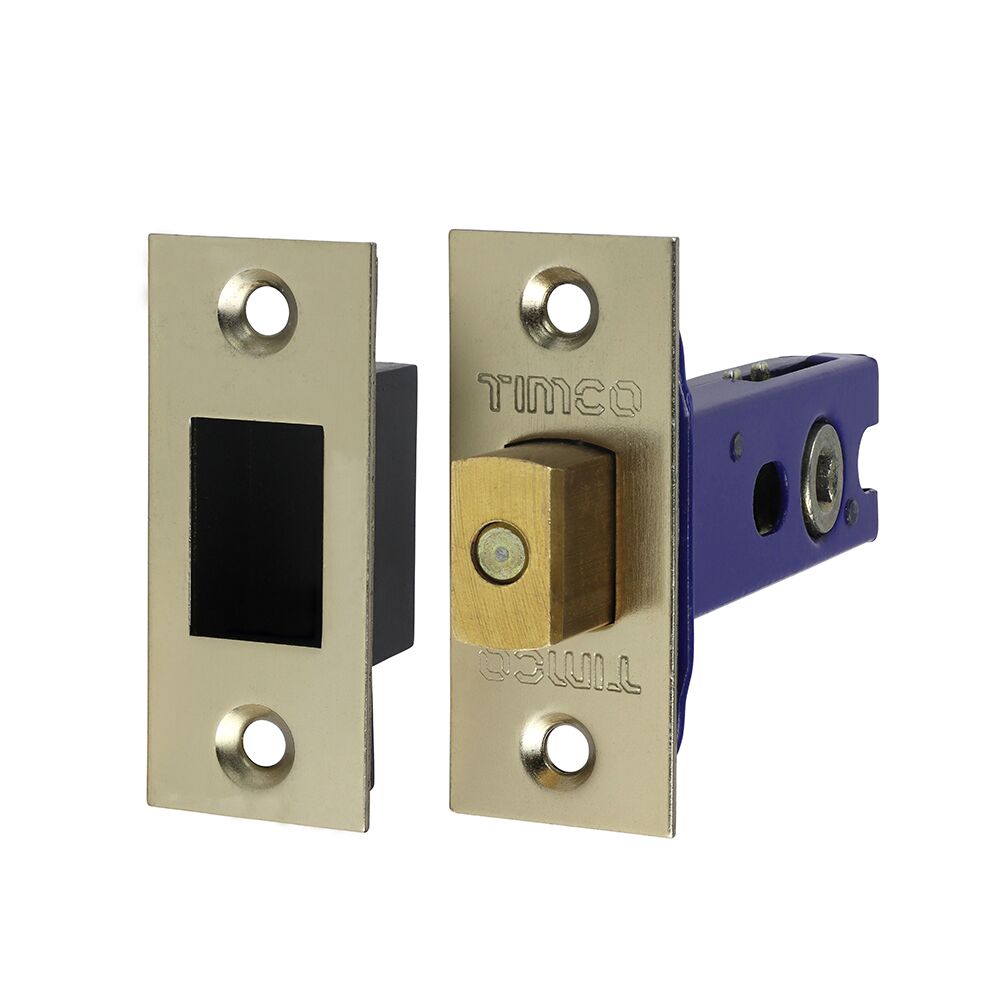

78mm Architectural Tubular Deadbolt – Electro Brass & Satin Nickel
£6.82 - £8.53
Excluding VAT
SKU: 675606P
A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
• Fixings for electro brass & satin nickle furniture
• Use with sprung or unsprung furniture
• Dust box
• Complete with fixing screws
Available
Product Code: 675606P
| Lock Case Width | 15 |
| Pack Qty | 1 |
| Pack Quantity Unit | Each |
| MOQ Increment | 1 |
| Bolt Throw (mm) | 15 |
| Backset (mm) | 57 |
| Lock Case Depth | 78 |
| Lock Case Height | 22.5 |
| Screw Size (mm) | 4.0 x 25 |
| Screw Size (imp.) | 8 x 1 |
| MOQ | 1 |
| Lock Case Size H x D (mm) | 22.5 x 78 |
| Lock Follower Backset (mm) | 57 |
| Size (mm) | 78 / 57 |
| Faceplate Type | Square |
| Finish | Electro Brass, Satin Nickel |
| Keep Size H x W (mm) | 60 x 25 |
| Faceplate Size H x W (mm) | 60 x 25 |
| Material | Steel |
