78mm Architectural Tubular Deadbolt – Electro Brass & Satin Nickel
£5.52 - £6.90
Excluding VAT
SKU: 675606

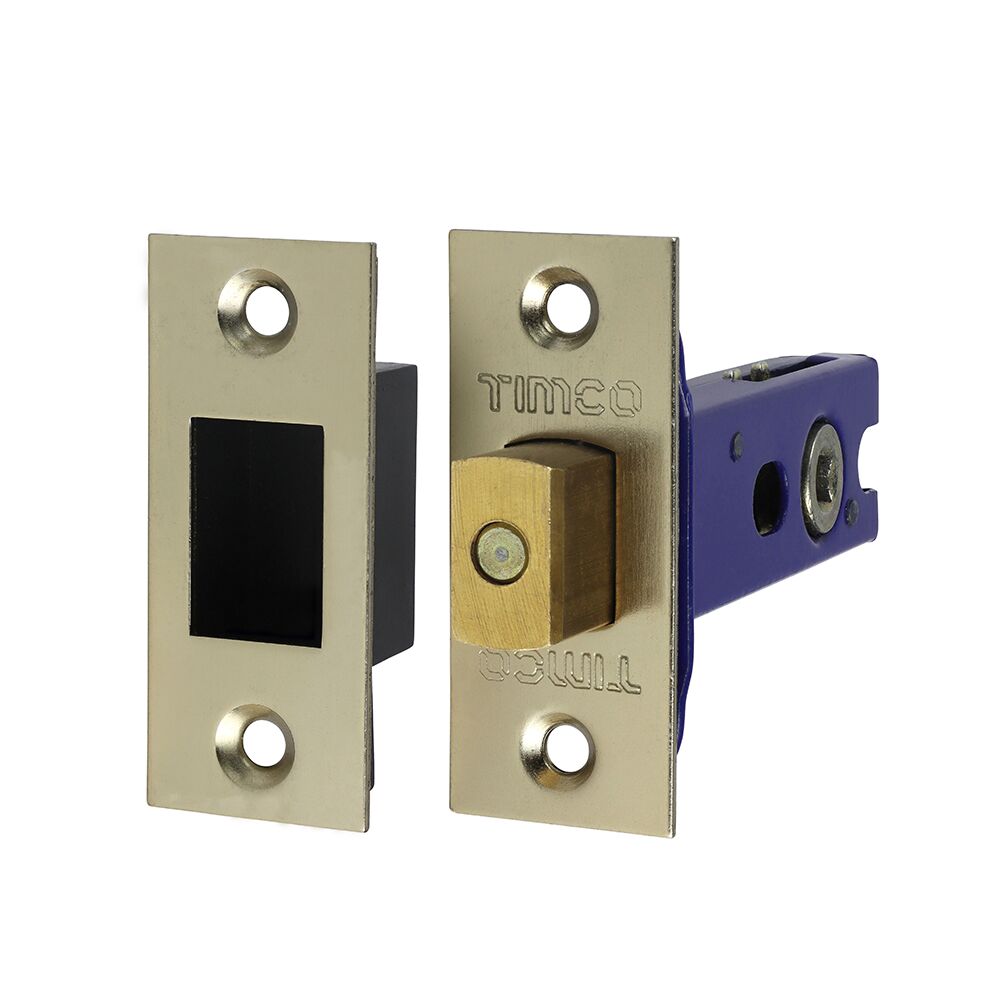

A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
Available
Product Code: 675606
| Lock Case Width | 15 |
| Screw Size (mm) | 4.0 x 25 |
| No. Of CSK Screws | 4 |
| Lock Case Size H x D (mm) | 22.5 x 78 |
| Lock Case Height | 22.5 |
| Bolt Throw (mm) | 15 |
| Packs per Carton | 10 |
| Pack Type | Plain Bag |
| Packs per Pallet | 1600 |
| Finish | Electro Brass, Satin Nickel |
| Pallet Qty (pcs) | 1600 |
| Lock Follower Backset (mm) | 57 |
| Size (mm) | 78 / 57 |
| Lock Case Depth | 78 |
| Keep Size H x W (mm) | 60 x 25 |
| Faceplate Type | Square |
| MOQ Increment | 1 |
| Pack Dimensions L x W x H (mm) | 28 x 78 x 54 |
| Backset (mm) | 57 |
| Pack Qty | 1 |
| Pack Quantity Unit | Each |
| Rec. Screw Ø (mm) | 4 |
| Rec. Screw Gauge (imp.) | 8 |
| Screw Size (imp.) | 8 x 1 |
| No. of Screws Required per Pair | 4 |
| MOQ | 1 |
| Faceplate Size H x W (mm) | 60 x 25 |
| Pack Weight (kg) | 0.184 |
