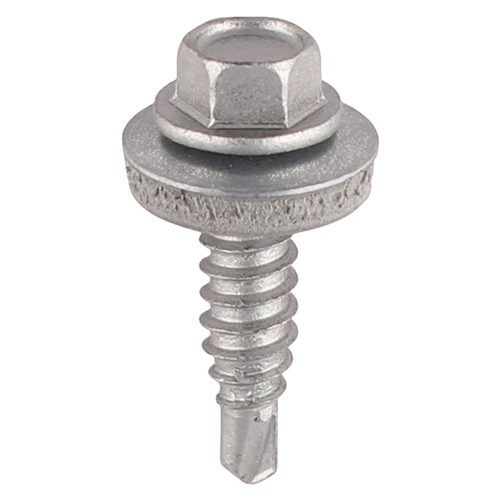

6.3 x 25mm Hexagon Stitching Screws – For Sheet to Sheet – with 16mm EPDM Washer – Self-Drilling – Exterior – Silver Organic
£0.08 - £0.10
Excluding VAT
SKU: 60146.603.025
Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head.
• Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
Available
FW Ø (mm) | 12 |
Drill Tip L (mm) | 5.5 |
EPDM Washer (mm) | 16 |
Finish | Exterior (Silver Organic) |
Head H (mm) | 5.6 |
Approval | BS EN 10666 (DIN 7504) |
Thread Type | 60° Tapered Self-Tapping |
Substrates | Thin Sheet Metal |
Material | Case & Core Hardened Carbon Steel |
Corrosion Rating (1-5) | 3 – Urban & industrial areas with a low salt atmosphere |
Effective Thread L (mm) | 12 |
Size (mm) | 6.3 x 25 |
Point Type | Self-Drilling No.2 Reduced |
MDT (mm) | 1.6 |
Pack Weight (kg) | 0.695 |
Head Type | Hex |
Thread Coverage | Fully Threaded |
