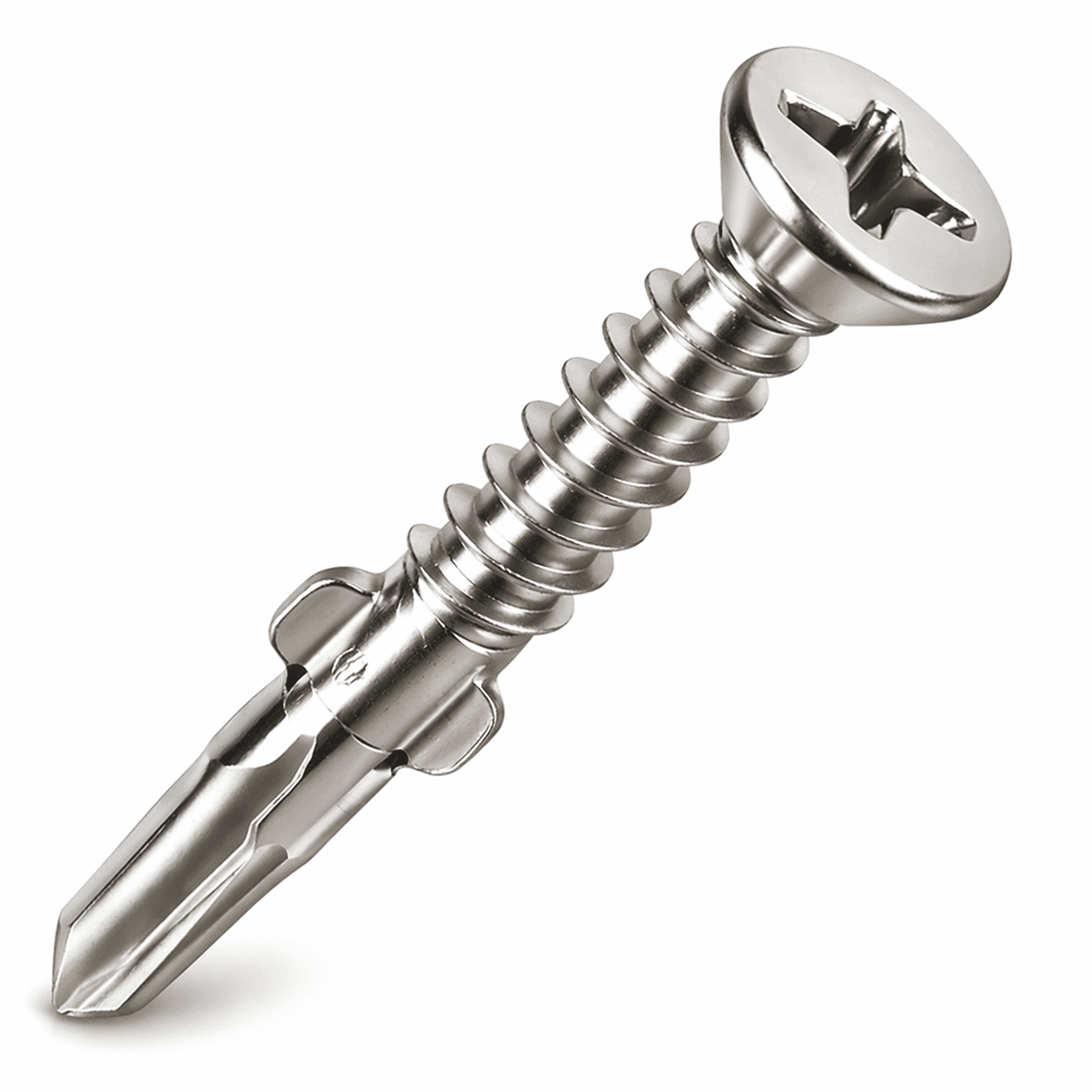

5.5 x 85mm Self Drill Phillips Countersunk Wing-Tip Screw – Metal Construction Timber to Heavy Section Steel – (Bi-Metal Exterior)

£0.66 - £0.83

Excluding VAT

SKU: 60153.505.085

Specifically designed to attach wood to metal (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.

• Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body

COC

Available

Quantity Price
1 - 99
100 - 499
500+
x

Size (mm) 5.5 x 85
Drill Tip L (mm) 21
Effective Thread L (mm) 45 *P/T
Finish Exterior (Silver Organic)
Material Bi-Metal/A2-304 Stainless Steel/Carbon Steel
Head Type Countersunk with Ribs
Thread Ø (mm) 5.5
Thread Type Metric, *P/T = Partially Threaded
Substrates Steel, Timber
Point Type Self-Drilling No.5
L (mm) 85
MFT (mm) 57
Corrosion Rating (1-5) 4 – Urban & industrial areas with a moderate salt atmosphere
To Suit Timber (mm) 30 – 49
Rec. RPM 1,000 – 1,800
Driver Bit Size PH3
Recess Type Phillips
Head H (mm) 3
Thread Coverage Fully Threaded
