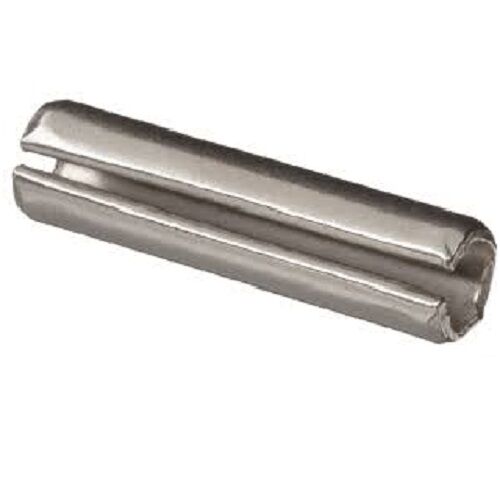

3.0 x 20mm Slotted Spring Pin Heavy Type ISO 8752 A1 Stainless Steel
£0.05 - £0.06
Excluding VAT
SKU: 51070.003.020
- Material: Steel
- Finish: Stainless Steel
- Standard: DIN 1481
Available
- Also known as Selloc Pins and ‘C’ Spring Pins
- Manufactured from stainless steel to resist corrosion
- Spring tempered, chamfered, deburred and oiled
- Self-retaining fastener
- Can be used to align components, retain shafts or act as an axis of rotation
- Ideal for use in shafts and hinges
- Conforms to ISO 8752, which is approximately equivalent to DIN 1481 and BS 7060
- The recommended hole size is equal to the nominal diameter with a H12 (plus) tolerance
- The free diameter is greater than the hole/nominal diameter, causing the pin to exert a radial force when installed
- Deburring the hole before installation is recommended
- For critical applications, a smaller diameter pin can be inserted into the pin after installation
- When using two pins, install the larger one first, then install the smaller pin with the slot 90°-180° away from the outer pin slot
