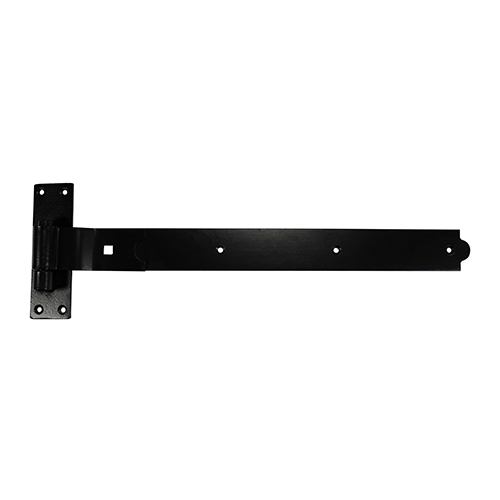

450mm Pair of Cranked Band & Hook On Plates – Black (Pack of 2)

£21.66 - £27.07

Excluding VAT

SKU: HBC450B

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBC450B
Material Carbon Steel
Pin Ø (inch) 58
Washer Size (mm) M10
Pin Ø (mm) 16
Number of Bolt Holes 2
Pack Type Plain Bag
Nut Type Hex Full
Band W (mm) 50
No. Of CSK Screws 14
Band L (inch) 18
Number of Screw Holes 14
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 14)
Washer Type Form A
Pack Qty 2
MOQ Increment 1
Pack Weight (kg) 2.9
Packs per Carton 5 Pairs
No. of Nuts 2
Hook Plate Size L x W (mm) 160 x 50
Finish Epoxy Black
To Suit Gate W (mm) 900 – 1350
Band L (mm) 450
No. of Carriage Bolts 2
Carriage Bolt Size (mm) M10 x 100
Nut Size (mm) M10
CSK Screw Size (mm) 6.0 x 40
To Fit Carriage Bolt Ø (mm) M10
Pack Dimensions L x W x H (mm) 160 x 30 x 590
MOQ 1
No. of Washers 2
Type Cranked
Band T (mm) 4.8
