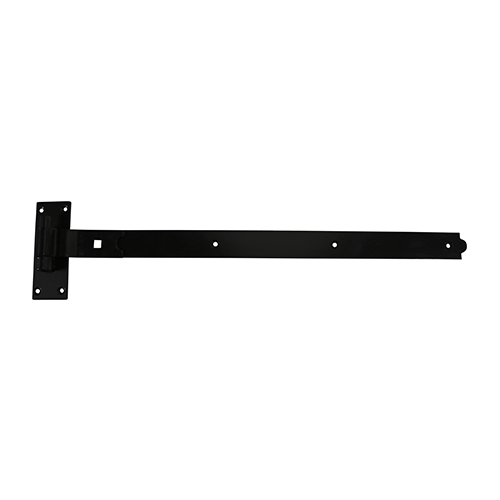

900mm Pair of Cranked Band & Hook On Plates – Black (Pack of 2)

£45.60 - £50.67

Excluding VAT

SKU: HBC900B

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBC900B
Carriage Bolt Size (mm) M10 x 100
No. of Carriage Bolts 2
Band W (mm) 50
Hook Plate Size L x W (mm) 200 x 75
To Fit Carriage Bolt Ø (mm) M10
MOQ 1
Pin Ø (inch) 34
Type Cranked
Band L (inch) 36
No. Of CSK Screws 16
Nut Size (mm) M10
Nut Type Hex Full
Band L (mm) 900
Band T (mm) 5.4
To Suit Gate W (mm) 1800 – 2700
Washer Size (mm) M10
No. of Washers 2
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 16)
Number of Screw Holes 16
Material Carbon Steel
Pack Weight (kg) 6.66
Washer Type Form A
Pack Type Plain Bag
Pack Dimensions L x W x H (mm) 152 x 30 x 1066
CSK Screw Size (mm) 6.0 x 40
Number of Bolt Holes 2
Pin Ø (mm) 19
Pack Qty 2
MOQ Increment 1
Packs per Carton 5 Pairs
No. of Nuts 2
Finish Epoxy Black
