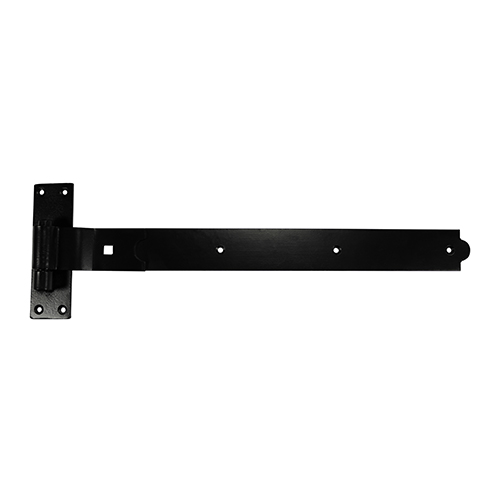

500mm Pair of Cranked Band & Hook On Plates – Black (Pack of 2)

£22.30 - £27.87

Excluding VAT

SKU: HBC500B

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBC500B
No. of Washers 2
Washer Size (mm) M10
Number of Bolt Holes 2
CSK Screw Size (mm) 6.0 x 40
Pin Ø (mm) 16
Nut Size (mm) M10
Pin Ø (inch) 58
No. Of CSK Screws 14
Pack Dimensions L x W x H (mm) 152 x 30 x 609
Band W (mm) 50
Finish Epoxy Black
To Suit Gate W (mm) 1000 – 1500
Material Carbon Steel
Band L (mm) 500
Band L (inch) 20
Number of Screw Holes 14
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 14)
No. of Nuts 2
MOQ Increment 1
Washer Type Form A
Pack Type Plain Bag
Pack Qty 2
Hook Plate Size L x W (mm) 160 x 50
Nut Type Hex Full
Pack Weight (kg) 3.03
To Fit Carriage Bolt Ø (mm) M10
MOQ 1
Carriage Bolt Size (mm) M10 x 100
No. of Carriage Bolts 2
Packs per Carton 5 Pairs
Type Cranked
Band T (mm) 4.8
