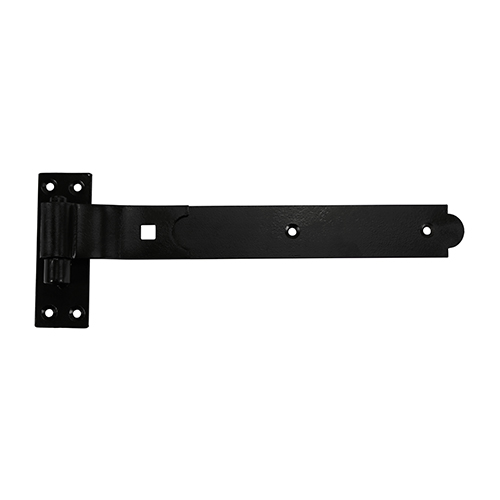

250mm Pair of Cranked Band & Hook On Plates – Black (Pack of 2)

£12.62 - £15.77

Excluding VAT

SKU: HBC250B

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBC250B
Pack Dimensions L x W x H (mm) 115 x 30 x 406
CSK Screw Size (mm) 6.0 x 40
No. of Carriage Bolts 2
Band T (mm) 4.8
Band L (mm) 250
Nut Size (mm) M10
No. of Washers 2
To Fit Carriage Bolt Ø (mm) M10
Finish Epoxy Black
Band W (mm) 40
Material Carbon Steel
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 12)
To Suit Gate W (mm) 500 – 750
Pack Weight (kg) 1.52
Number of Screw Holes 12
Washer Size (mm) M10
Nut Type Hex Full
Pin Ø (mm) 12
No. Of CSK Screws 12
Type Cranked
Washer Type Form A
Pack Type Plain Bag
No. of Nuts 2
Band L (inch) 10
Pin Ø (inch) 12
Packs per Carton 5 Pairs
Number of Bolt Holes 2
Hook Plate Size L x W (mm) 115 x 40
Pack Qty 2
Carriage Bolt Size (mm) M10 x 100
