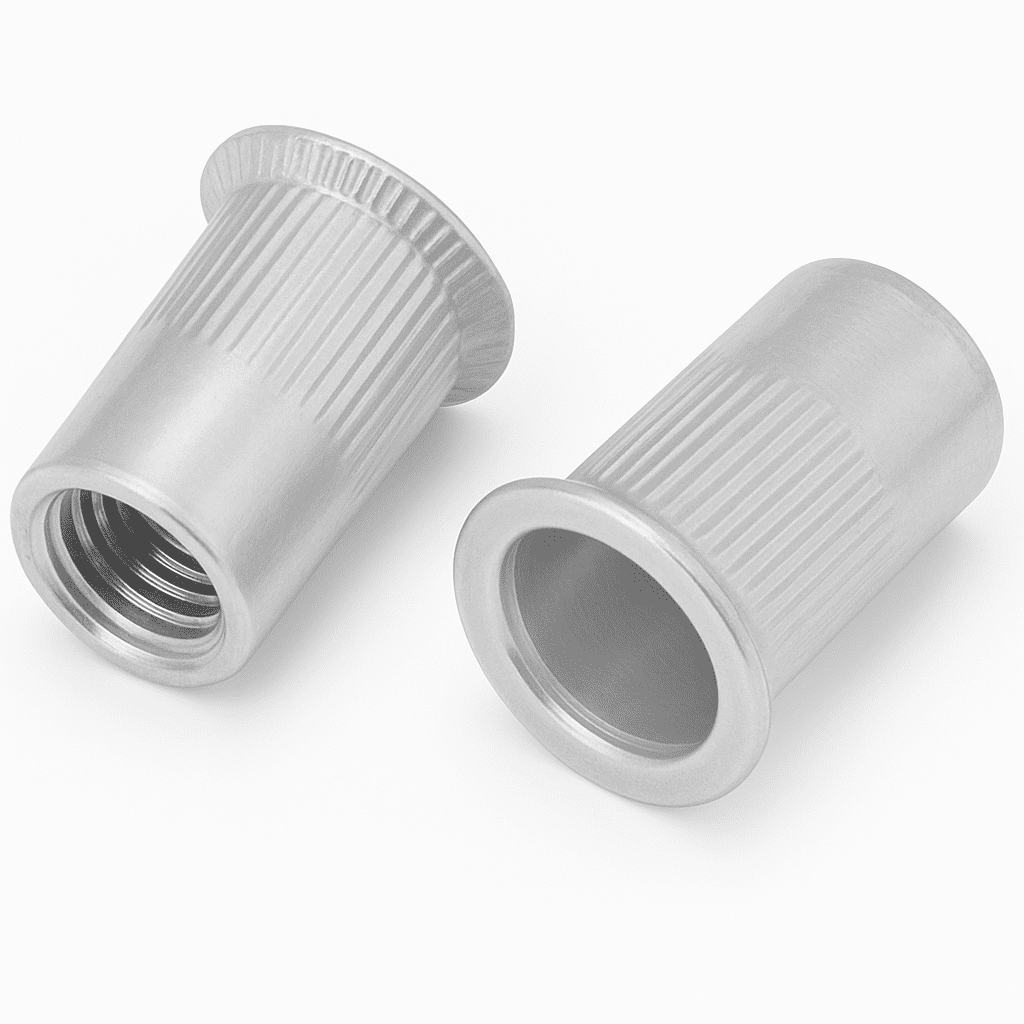

M3 x 8.5mm Aluminium Grooved Countersunk Head, Open End Rivet Nut, Grip range 1.50 – 2.50mm, Hole Size 5.1mm
£0.05
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 54035.300.001
Grip Range: 1.5 – 2.5mm
Internal thread size: M3 x 0.5mm pitch
Drill/hole diameter: 5.1mm
Body Diameter: 5mm
Head Diameter: 8mm
Head Height: 1.5mm
Available
Manufactured from aluminium for light weight, easy setting and resistance to corrosion
Sizes shown are thread size x original length
For best results, hole diameter should be 0.1mm larger than rivet nut body
Grip range: Minimum and maximum material thickness into which the nut can be set
