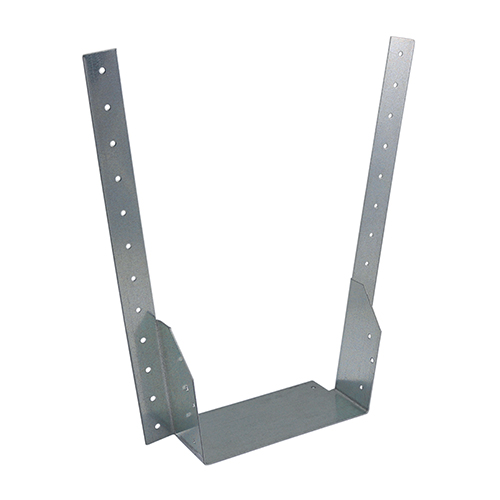

76 x 100 to 225 Timber Hangers – Austenitic Stainless Steel (A2-304)
£13.52 - £16.90
Excluding VAT
SKU: 47109.076.100
The Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
• Conforms to Eurocode 5 and service class 2
Available
Product Code: 76THS
| Leg L (mm) | 300 |
| W (mm) | 76 |
| B (mm) | 50 |
| Joist Size W x H (mm) | 76 x 100 to 225 |
| Nail Holes (3.75mm) | 32 |
| Type | Standard |
| Material | Austenitic Stainless Steel (A2-304) |
| Corrosion Rating (1-5) | 4 – Urban & industrial areas with a moderate salt atmosphere |
| Characteristic Value (kN) For Eurocode 5 | 14.41 |
| Safe Working For BS5268 (kN) Short Term | 7.72 |
| Safe Working For BS5268 (kN) Medium Term | 7.35 |
| Safe Working For BS5268 (kN) Long Term | 6.43 |
