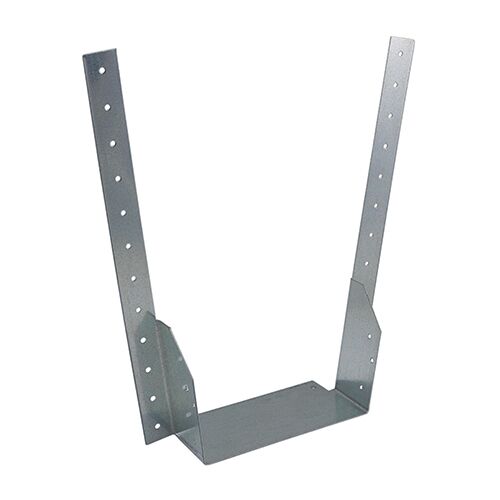

125 x 100 to 225 Timber Hangers – Standard – Carbon Steel Galvanised
£2.94 - £3.67
Excluding VAT
SKU: 47108.125.100
The Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
• Conforms to Eurocode 5 and service class 2
Available
Product Code: 125TH
| Leg L (mm) | 300 |
| W (mm) | 125 |
| B (mm) | 50 |
| Joist Size W x H (mm) | 125 x 100 to 225 |
| Nail Holes (3.75mm) | 32 |
| Type | Standard |
| Material | Carbon Steel |
| Finish | Galvanised |
| Corrosion Rating (1-5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Characteristic Value (kN) For Eurocode 5 | 15.44 |
| Safe Working For BS5268 (kN) Short Term | 7.72 |
| Safe Working For BS5268 (kN) Medium Term | 7.35 |
| Safe Working For BS5268 (kN) Long Term | 6.43 |
