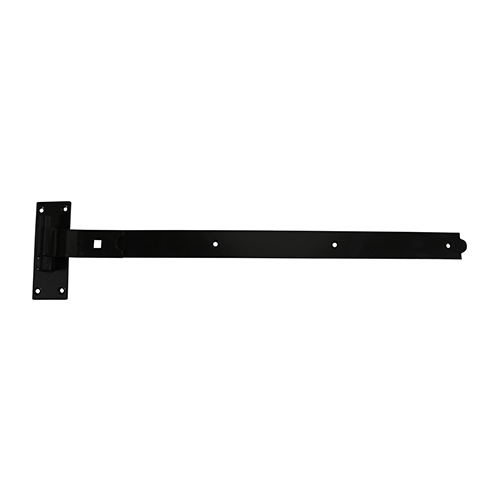

750mm Pair of Cranked Band & Hook On Plates – Black (Pack of 2)

£37.26 - £46.57

Excluding VAT

SKU: HBC750B

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBC750B
Type Cranked
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 14)
Material Carbon Steel
MOQ Increment 1
Number of Screw Holes 14
Number of Bolt Holes 2
No. of Nuts 2
Washer Type Form A
Pin Ø (inch) 34
Pack Qty 2
To Suit Gate W (mm) 1500 – 2250
Pack Type Plain Bag
Nut Type Hex Full
No. Of CSK Screws 14
Carriage Bolt Size (mm) M10 x 100
CSK Screw Size (mm) 6.0 x 40
MOQ 1
No. of Washers 2
Pack Dimensions L x W x H (mm) 152 x 30 x 914
Band T (mm) 5.4
Band L (inch) 30
Pack Weight (kg) 5.47
Nut Size (mm) M10
Pin Ø (mm) 19
Band L (mm) 750
To Fit Carriage Bolt Ø (mm) M10
Finish Epoxy Black
Band W (mm) 50
Washer Size (mm) M10
No. of Carriage Bolts 2
Packs per Carton 5 Pairs
Hook Plate Size L x W (mm) 200 x 75
