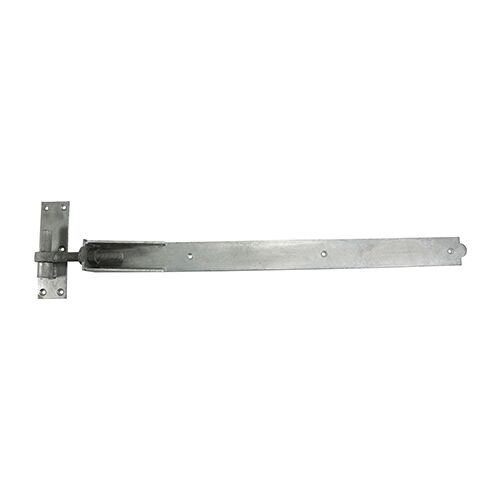

750mm Pair of Adjustable Band & Hook on Plates – Hot Dipped Galvanised (Pack of 2)

£38.38 - £47.98

Excluding VAT

SKU: ABH750G

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: ABH750G
Band W (mm) 60
Band T (mm) 5
Finish Hot Dipped Galvanised
Nut Type Hex Full
Band L (inch) 30
Pack Weight (kg) 7.28
CSK Screw Size (mm) 6.0 x 40
Pin Ø (inch) 3/4
No. Of CSK Screws 14
Rec. Screw Ø (mm) 6
No. of Nuts 2
No. of Carriage Bolts 2
Washer Size (mm) M12
Band L (mm) 750
Hook Plate Size L x W (mm) 200 x 60
Type Adjustable
Pack Type Plain Bag
Washer Type Form A
To Fit Carriage Bolt Ø (mm) M12
Number of Screw Holes 14
Pin Ø (mm) 19
Pack Qty 2
Packs per Carton 4 Pairs
Rec. Screw Gauge (imp.) 12
Included Items M12 x 65mm Carriage Bolts (Qty 2)
M12 Hex Full Nuts (Qty 2)
M12 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 14)
Pack Dimensions L x W x H (mm) 152 x 30 x 914
Nut Size (mm) M12
No. of Washers 2
Number of Bolt Holes 2
Material Carbon Steel
To Suit Gate W (mm) 1500 – 2250
MOQ 1
