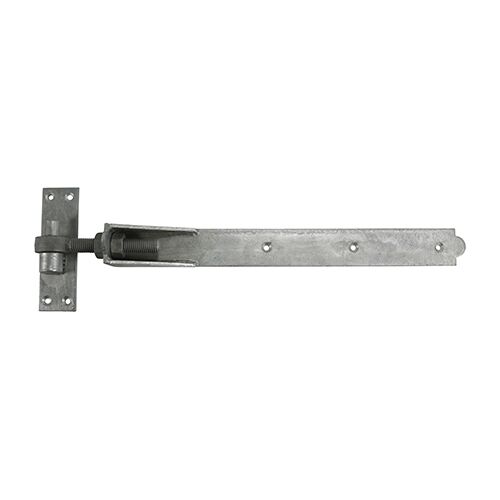

350mm Pair of Adjustable Band & Hook on Plates – Hot Dipped Galvanised (Pack of 2)

£22.32 - £27.90

Excluding VAT

SKU: ABH350G

  • The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: ABH350G
Number of Bolt Holes 2
Pack Dimensions L x W x H (mm) 152 x 30 x 457
Nut Size (mm) M12
MOQ Increment 1
Pin Ø (inch) 3/4
No. of Nuts 2
Packs per Carton 4 Pairs
Pack Qty 2
Washer Type Form A
MOQ 1
Nut Type Hex Full
Material Carbon Steel
Band T (mm) 5
Type Adjustable
Included Items M12 x 65mm Carriage Bolts (Qty 2)
M12 Hex Full Nuts (Qty 2)
M12 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 12)
Hook Plate Size L x W (mm) 160 x 50
Rec. Screw Ø (mm) 6
To Suit Gate W (mm) 700 – 1050
Pack Weight (kg) 4.5
Band L (mm) 350
Pin Ø (mm) 19
To Fit Carriage Bolt Ø (mm) M12
Number of Screw Holes 12
No. of Washers 2
Band W (mm) 50
No. of Carriage Bolts 2
Rec. Screw Gauge (imp.) 12
Pack Type Plain Bag
Finish Hot Dipped Galvanised
Band L (inch) 14
No. Of CSK Screws 12
Washer Size (mm) M12
CSK Screw Size (mm) 6.0 x 40
