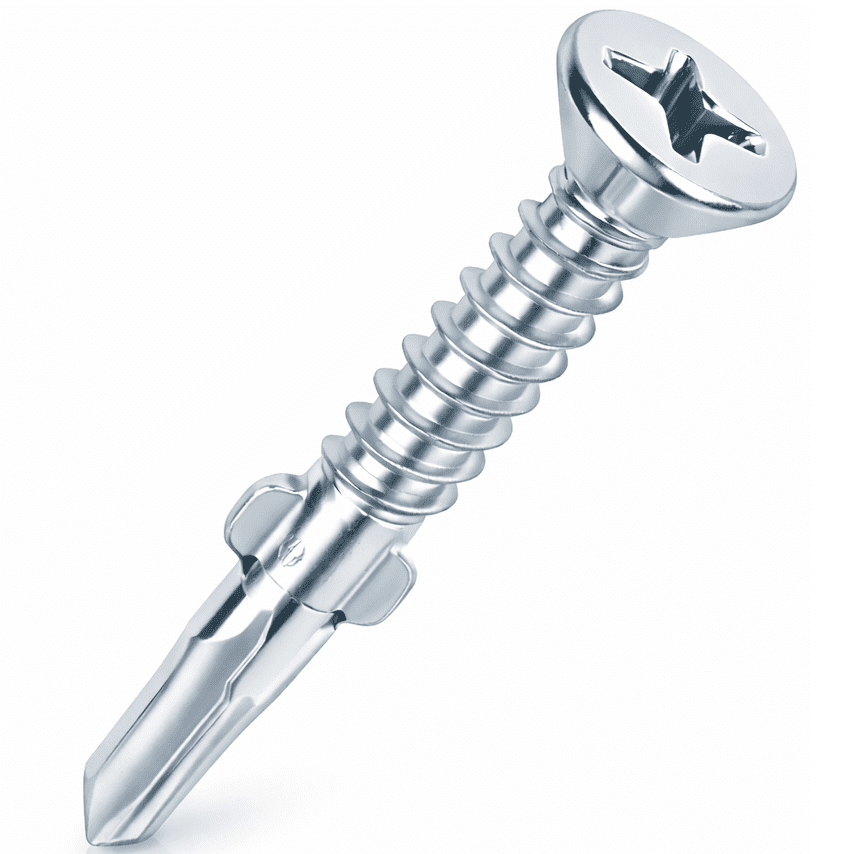

5.5 x 85mm Self Drill Phillips Countersunk Wing-Tip Screw – Metal Construction Timber to Heavy Section Screws – Zinc Plated
£0.13 - £0.17
Excluding VAT
SKU: 60152.505.085
Available
| Size (mm) | 5.5 x 85 |
| Thread Ø (mm) | 5.5 |
| Head H (mm) | 5 |
| Type | For Timber to Heavy Section Steel |
| Recess Type | Phillips |
| Substrates | Steel, Timber |
| Drill Tip L (mm) | 25 |
| Head Type | Countersunk with Ribs |
| Driver Bit Size | PH3 |
| To Suit Timber (mm) | 30 – 49 |
| Steel & Fixture Thickness (mm) | 55 |
| Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
| Rec. RPM | 1,000 – 1,800 |
| Included Items | PH3 S2 Bit (Qty 1) |
| L (mm) | 85 |
| Head Ø (mm) | 11 |
| MDT (mm) | 12 |
| Point Type | Self-Drilling No.5 |
| Finish | Zinc |
| Effective Thread L (mm) | 51 |
| Material | Case & Core Hardened Carbon Steel |
| Approval | BS EN 10666 (DIN 7504) |
| Thread Type | Metric |
| Thread Coverage | Fully Threaded |
