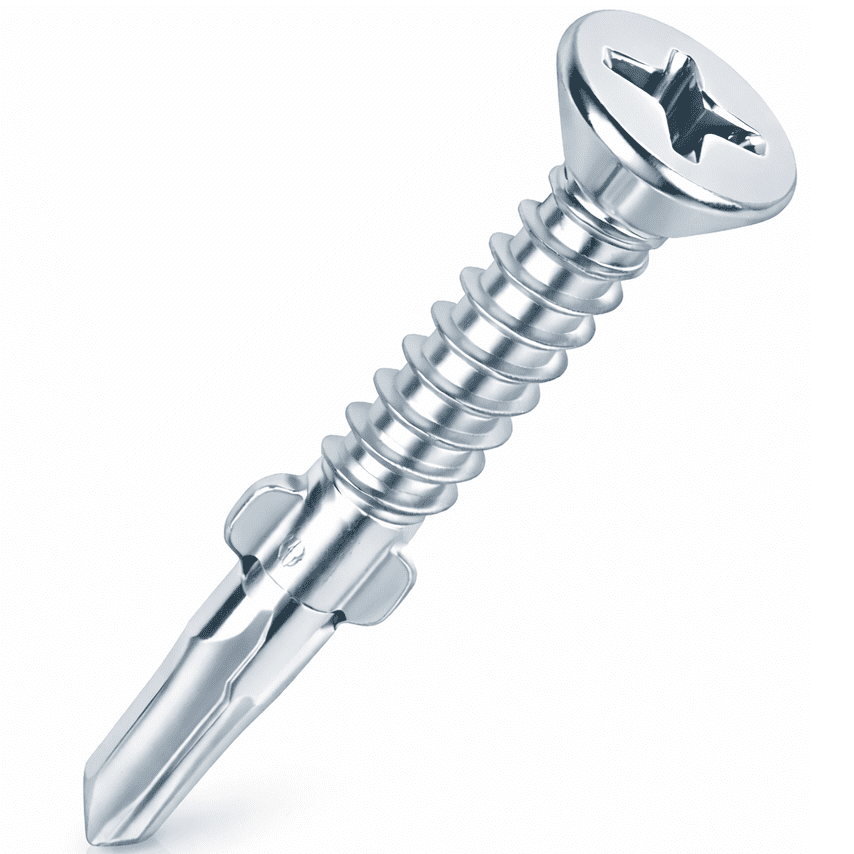

5.5 x 120mm Self Drill Phillips Countersunk Wing-Tip Screw – Metal Construction Timber to Heavy Section Screws – Zinc Plated
£0.19 - £0.24
Excluding VAT
SKU: 60152.505.120
Available
Head H (mm) | 5 |
Pack Quantity Unit | Pieces |
Thread Type | Metric, *P/T = Partially Threaded |
Rec. RPM | 1,000 – 1,800 |
To Suit Timber (mm) | 50 – 84 |
L (mm) | 120 |
Thread Ø (mm) | 5.5 |
MDT (mm) | 12 |
Point Type | Self-Drilling No.5 |
Finish | Zinc |
Drill Tip L (mm) | 25 |
Head Type | Countersunk with Ribs |
Approval | BS EN 10666 (DIN 7504) |
Size (mm) | 5.5 x 120 |
Driver Bit Size | PH3 |
Material | Case & Core Hardened Carbon Steel |
Effective Thread L (mm) | 51 *P/T |
Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
Steel & Fixture Thickness (mm) | 90 |
Included Items | PH3 S2 Bit (Qty 1) |
Recess Type | Phillips |
Head Ø (mm) | 11 |
Type | For Timber to Heavy Section Steel |
Substrates | Steel, Timber |
Thread Coverage | Partially Threaded |
