450mm Standard Double Strap Hinge Set – Hot Dipped Galvanised
£27.54 - £34.42
Excluding VAT
SKU: SFH450G
Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
• Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Hooks to drive are barbed, preventing the gate from working loose
Available
Product Code: SFH450G
| Carriage Bolt Size (mm) | M10 x 95 |
| Finish | Hot Dipped Galvanised |
| To Fit Carriage Bolt Ø (mm) | M10 |
| Top Strap L (mm) | 450 |
| Number of Screw Holes | 2 |
| MOQ Increment | 1 |
| CSK Screw Size (mm) | 6.0 x 40 |
| Bottom Strap L (inch) | 6 |
| Nut Type | Hex Full |
| Hook to Bolt Ø x L (mm) | M20 x 350 |
| Washer Type | Form A |
| MOQ | 1 |
| No. of Washers | 4 |
| Washer Size (mm) | M10 |
| Pack Type | Plain Bag |
| Hook to Drive Size (mm) | 215 x 22 |
| Pack Qty | 1 |
| To Suit Gate W (mm) | 1200 – 2700 |
| Packs per Carton | 4 |

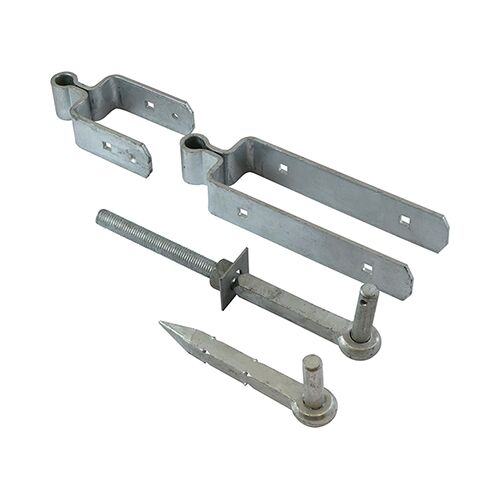

| Contents | 450mm Top Strap (Qty 1) 150mm Bottom Strap (Qty 1) 215mm Hook to Drive (Qty 1) M20 x 350mm Hook to Bolt (Qty 1) M10 x 95mm Carriage Bolts (Qty 4) M10 Full Hex Nuts (Qty 4) M10 Washers (Qty 4) 6.0 x 40mm TIMco Exterior Woodscrews (Qty 2) |
| Bottom Strap L (mm) | 150 |
| Pack Dimensions L x W x H (mm) | 152 x 30 x 610 |
| No. of Carriage Bolts | 4 |
| Material | Carbon Steel |
| To Suit Gate T (inch) | 3 |
| No. Of CSK Screws | 2 |
| Pin Ø (mm) | 19 |
| Strap T (mm) | 6 |
| Pack Weight (kg) | 5.28 |
| Nut Size (mm) | M10 |
| No. of Nuts | 4 |
| To Suit Gate T (mm) | 75 |
| Pin Ø (inch) | 3⁄4 |
| Top Strap L (inch) | 18 |
| To Suit Gate W (ft) | 4 – 9 |
