300mm Standard Double Strap Hinge Set – Hot Dipped Galvanised
£24.24 - £30.30
Excluding VAT
SKU: SFH300G
Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
• Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Hooks to drive are barbed, preventing the gate from working loose
Available
Product Code: SFH300G
CSK Screw Size (mm) | 6.0 x 40 |
Pack Dimensions L x W x H (mm) | 152 x 30 x 457 |
Top Strap L (inch) | 12 |
Carriage Bolt Size (mm) | M10 x 95 |
Top Strap L (mm) | 300 |
Pack Qty | 1 |
No. Of CSK Screws | 2 |
To Fit Carriage Bolt Ø (mm) | M10 |
Nut Size (mm) | M10 |
Number of Screw Holes | 2 |
Packs per Carton | 4 |
MOQ Increment | 1 |
Pin Ø (mm) | 19 |
No. of Carriage Bolts | 4 |
No. of Washers | 4 |
Washer Type | Form A |
Hook to Drive Size (mm) | 215 x 22 |
Finish | Hot Dipped Galvanised |
Bottom Strap L (mm) | 150 |
MOQ | 1 |
To Suit Gate W (mm) | 900 – 1200 |
To Suit Gate T (mm) | 75 |
Strap T (mm) | 6 |
Hook to Bolt Ø x L (mm) | M20 x 350 |
Pack Type | Plain Bag |
Washer Size (mm) | M10 |

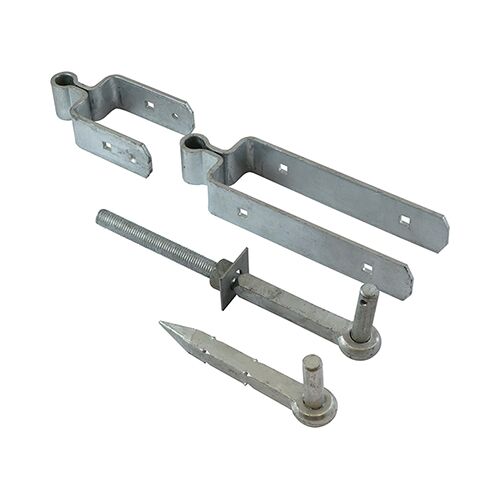

Contents | 300mm Top Strap (Qty 1) 150mm Bottom Strap (Qty 1) 215mm Hook to Drive (Qty 1) M20 x 350mm Hook to Bolt (Qty 1) M10 x 95mm Carriage Bolts (Qty 4) M10 Full Hex Nuts (Qty 4) M10 Washers (Qty 4) 6.0 x 40mm TIMco Exterior Woodscrews (Qty 2) |
Nut Type | Hex Full |
No. of Nuts | 4 |
Bottom Strap L (inch) | 6 |
Material | Carbon Steel |
Pack Weight (kg) | 4.61 |
To Suit Gate W (ft) | 3 – 4 |
Pin Ø (inch) | 3⁄4 |
To Suit Gate T (inch) | 3 |
