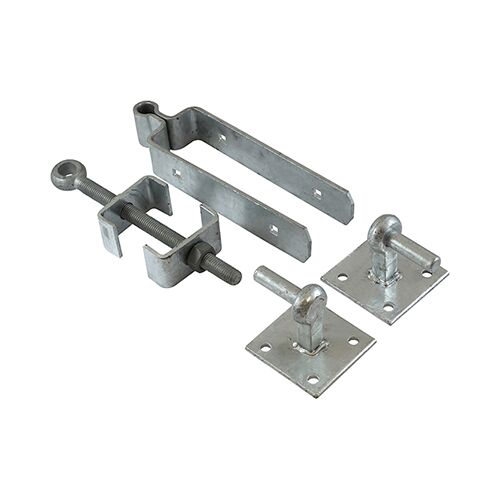

450mm Adjustable Hinge Set With Hook On Plate – Hot Dipped Galvanised
£31.14 - £38.92
Excluding VAT
SKU: AFHP450G
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending
• Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Hooks to drive are barbed, preventing the gate from working loose
Available
Product Code: AFHP450G
| To Suit Gate T (mm) | 75 |
| Pack Weight (kg) | 5.63 |
| MOQ | 1 |
| No. of Carriage Bolts | 3 |
| To Suit Gate T (inch) | 3 |
| No. of Washers | 3 |
| To Suit Gate W (ft) | 4 – 9 |
| No. of Coach Screws | 8 |
| Top Strap L (mm) | 450 |
| Gate Eye Ø x L (mm) | M19 x 250 |
| Packs per Carton | 4 |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 610 |
| Nut Size (mm) | M10 |
| Washer Size (mm) | M10 |
| Pin Ø (inch) | 3⁄4 |
| Hook Plate Size L x W (mm) | 100 x 100 |
| Coach Screw Size (mm) | M10 x 65 |
| Nut Type | Hex Full |
| Top Strap L (inch) | 18 |
| MOQ Increment | 1 |
| No. of Nuts | 3 |
| Pack Qty | 1 |
| Strap T (mm) | 6 |
| To Fit Carriage Bolt Ø (mm) | M10 |
| Pack Type | Plain Bag |
| Material | Carbon Steel |
| Pin Ø (mm) | 19 |
| To Suit Gate W (mm) | 1200 – 2700 |
| Heel Clip Size L x W x D (mm) | 86 x 50 x 32 |
| Washer Type | Form A |
| Finish | Hot Dipped Gal |
