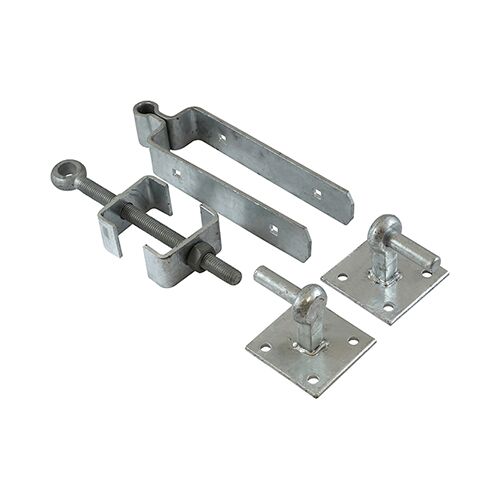

300mm Adjustable Hinge Set With Hook On Plate – Hot Dipped Galvanised
£27.12 - £33.90
Excluding VAT
SKU: AFHP300G
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending
• Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
• Hooks to drive are barbed, preventing the gate from working loose
Available
Product Code: AFHP300G
| Washer Size (mm) | M10 |
| Pin Ø (inch) | 3⁄4 |
| Top Strap L (inch) | 12 |
| Pack Type | Plain Bag |
| MOQ Increment | 1 |
| Strap T (mm) | 6 |
| To Fit Carriage Bolt Ø (mm) | M10 |
| No. of Washers | 2 |
| Heel Clip Size L x W x D (mm) | 86 x 50 x 32 |
| Washer Type | Form A |
| To Suit Gate W (mm) | 900 – 1200 |
| To Suit Gate T (inch) | 3 |
| MOQ | 1 |
| Finish | Hot Dipped Galvanised |
| Pack Qty | 1 |
| Packs per Carton | 4 |
| No. of Coach Screws | 8 |
| Nut Type | Hex Full |
| Pack Dimensions L x W x H (mm) | 178 x 30 x 457 |
| Gate Eye Ø x L (mm) | M19 x 250 |
| To Suit Gate T (mm) | 75 |
| Pin Ø (mm) | 19 |
| Material | Carbon Steel |
| Pack Weight (kg) | 5.26 |
| No. of Nuts | 2 |
| To Suit Gate W (ft) | 3 – 4 |
| Coach Screw Size (mm) | M10 x 65 |
| No. of Carriage Bolts | 2 |
| Nut Size (mm) | M10 |
| Hook Plate Size L x W (mm) | 100 x 100 |
| Top Strap L (mm) | 300 |
