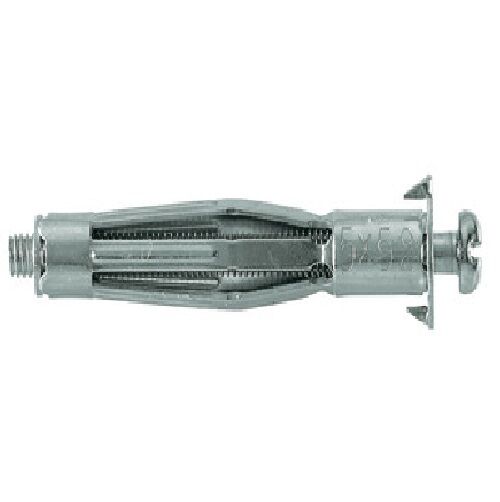

Metal Cavity Fixing, Fischer HM 5 x 65 S

After installation, screw supplied can be replaced with hook, eyelet, threaded pin with metric thread, as fixing always remains in its expanded position
Fixing can be expanded either by tightening the screw or pulling it with installation pliers

Area of application
For plasterboard, fibreboard, chipboard, fibre cement board, lightweight woodshaving
board, hard fibreboard, hollow brick, hollow stone floors

Installation
Expanding arms and radial pressure increase the load bearing capacity and security
Claws prevent the wall plug from rotating when being installed
The flush-fitted, permanently expanded wall plug allows removing and refitting of the surface mounted part for several times
Each dimension covers an extensive range of panel thicknesses

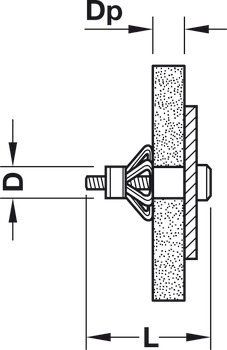

Installation reference
The wall plug can be mounted either with installation pliers (051.81.010), cordless screwdriver or screwdriver
