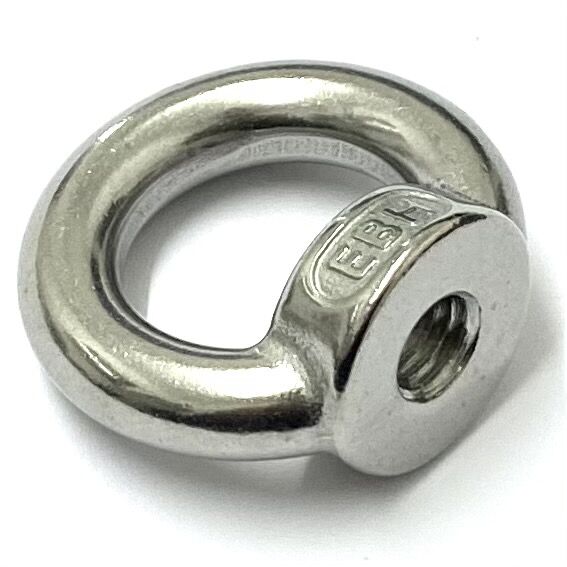

M6 Lifting Eye Nuts, Stainless Steel A2 (304) – DIN 582
£0.99 - £1.10
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 10091.060.000
Material: Stainless Steel
Class / Grade: A2 (304)
Thread Diameter: M6
Thread: Metric Thread
Thread Direction: Right
Pitch: 1.00
Nut Shape: Hexagon
Code: DIN 582
Please click for complete Eye Nut Dimensions
Available

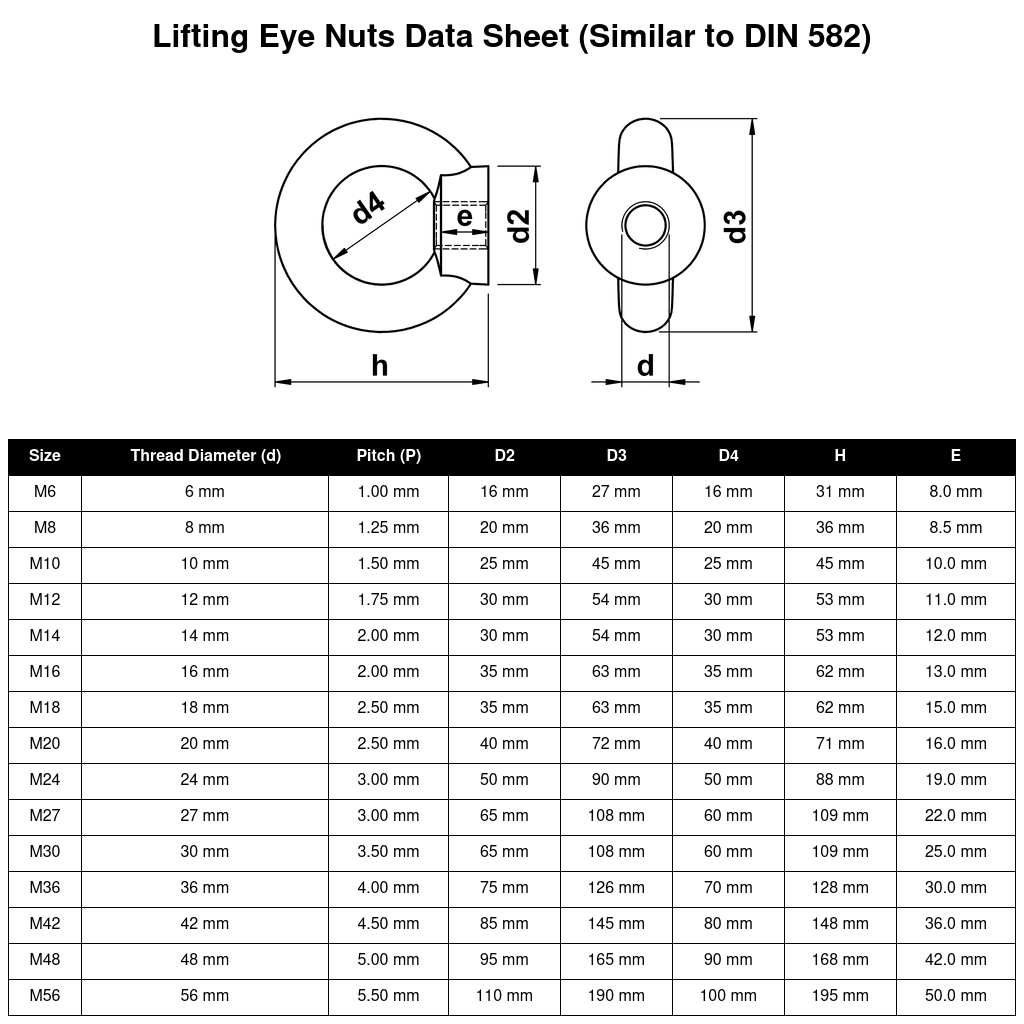

Lifting Eye Nuts Data Sheet (Similar to DIN 582)
| Size | Thread Diameter (d) | Pitch (P) | D2 | D3 | D4 | H | E |
|---|---|---|---|---|---|---|---|
| M6 | 6 mm | 1.00 mm | 16 mm | 27 mm | 16 mm | 31 mm | 8.0 mm |
| M8 | 8 mm | 1.25 mm | 20 mm | 36 mm | 20 mm | 36 mm | 8.5 mm |
| M10 | 10 mm | 1.50 mm | 25 mm | 45 mm | 25 mm | 45 mm | 10.0 mm |
| M12 | 12 mm | 1.75 mm | 30 mm | 54 mm | 30 mm | 53 mm | 11.0 mm |
| M14 | 14 mm | 2.00 mm | 30 mm | 54 mm | 30 mm | 53 mm | 12.0 mm |
| M16 | 16 mm | 2.00 mm | 35 mm | 63 mm | 35 mm | 62 mm | 13.0 mm |
| M18 | 18 mm | 2.50 mm | 35 mm | 63 mm | 35 mm | 62 mm | 15.0 mm |
| M20 | 20 mm | 2.50 mm | 40 mm | 72 mm | 40 mm | 71 mm | 16.0 mm |
| M24 | 24 mm | 3.00 mm | 50 mm | 90 mm | 50 mm | 88 mm | 19.0 mm |
| M27 | 27 mm | 3.00 mm | 65 mm | 108 mm | 60 mm | 109 mm | 22.0 mm |
| M30 | 30 mm | 3.50 mm | 65 mm | 108 mm | 60 mm | 109 mm | 25.0 mm |
| M36 | 36 mm | 4.00 mm | 75 mm | 126 mm | 70 mm | 128 mm | 30.0 mm |
| M42 | 42 mm | 4.50 mm | 85 mm | 145 mm | 80 mm | 148 mm | 36.0 mm |
| M48 | 48 mm | 5.00 mm | 95 mm | 165 mm | 90 mm | 168 mm | 42.0 mm |
| M56 | 56 mm | 5.50 mm | 110 mm | 190 mm | 100 mm | 195 mm | 50.0 mm |
