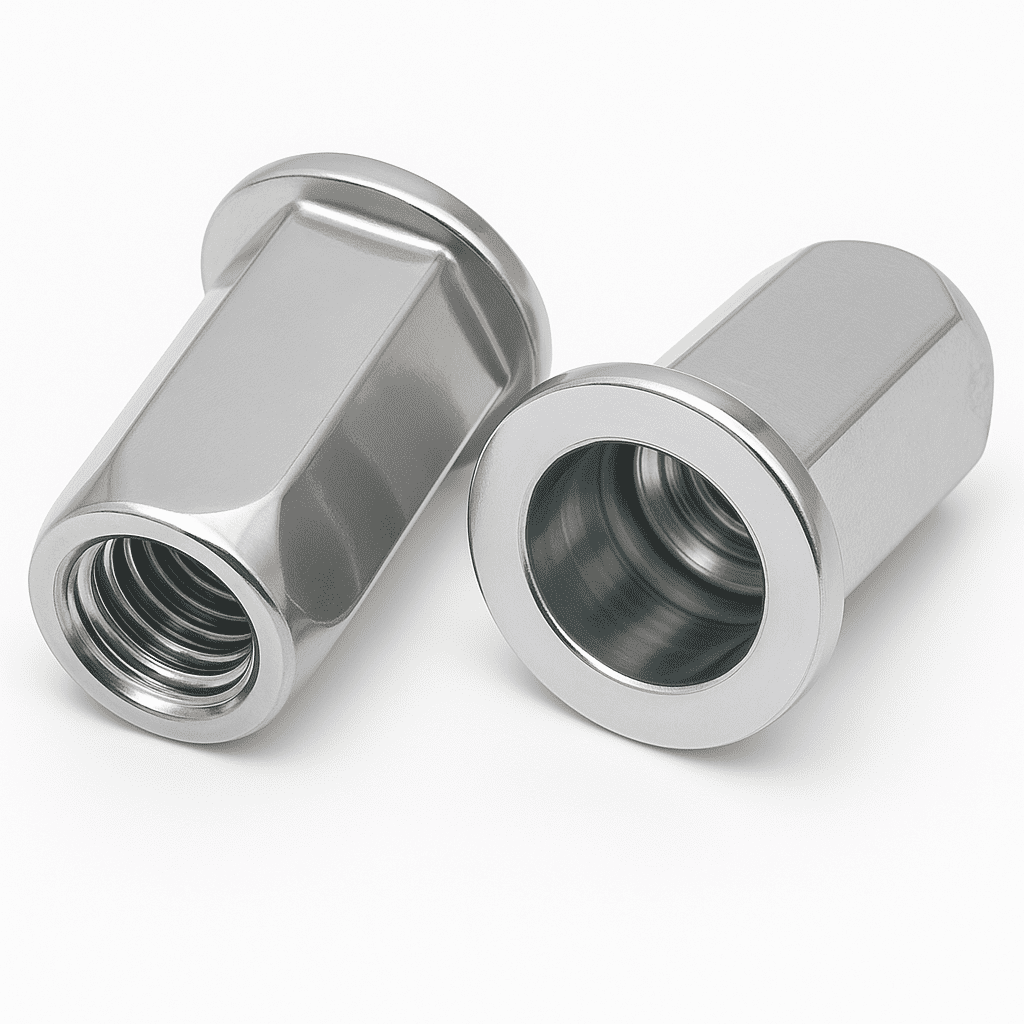

M5 x 14.0mm Steel Full Hexagon Flat Head, Round Open End Rivet Nut, Grip range 0.5 – 2.5mm
£0.04 - £0.05
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 54042.500.001
Grip Range: 0.5 – 2.5mm
Thread pitch: 0.8mm
Body Width (across flats): 6.9mm
Head Diameter: 10.0mm
Head Height: 1.0mm
Available
When installing, a hexagonal body is inserted into a hexagonal hole to prevent turning. This is helpful when using screws frequently for assembly and disassembly.
Large flange can be used as a spacer and strengthens the hole in thin materials.
Use in hexagonal punched holes when high pull-out resistance and high torque are required.
Zinc-plated steel with a steel body
Sizes are displayed as thread size x original length.
The hole’s diameter should be 0.1mm bigger than the rivet nut’s body for the best results.
Grip range = total sheet thickness
