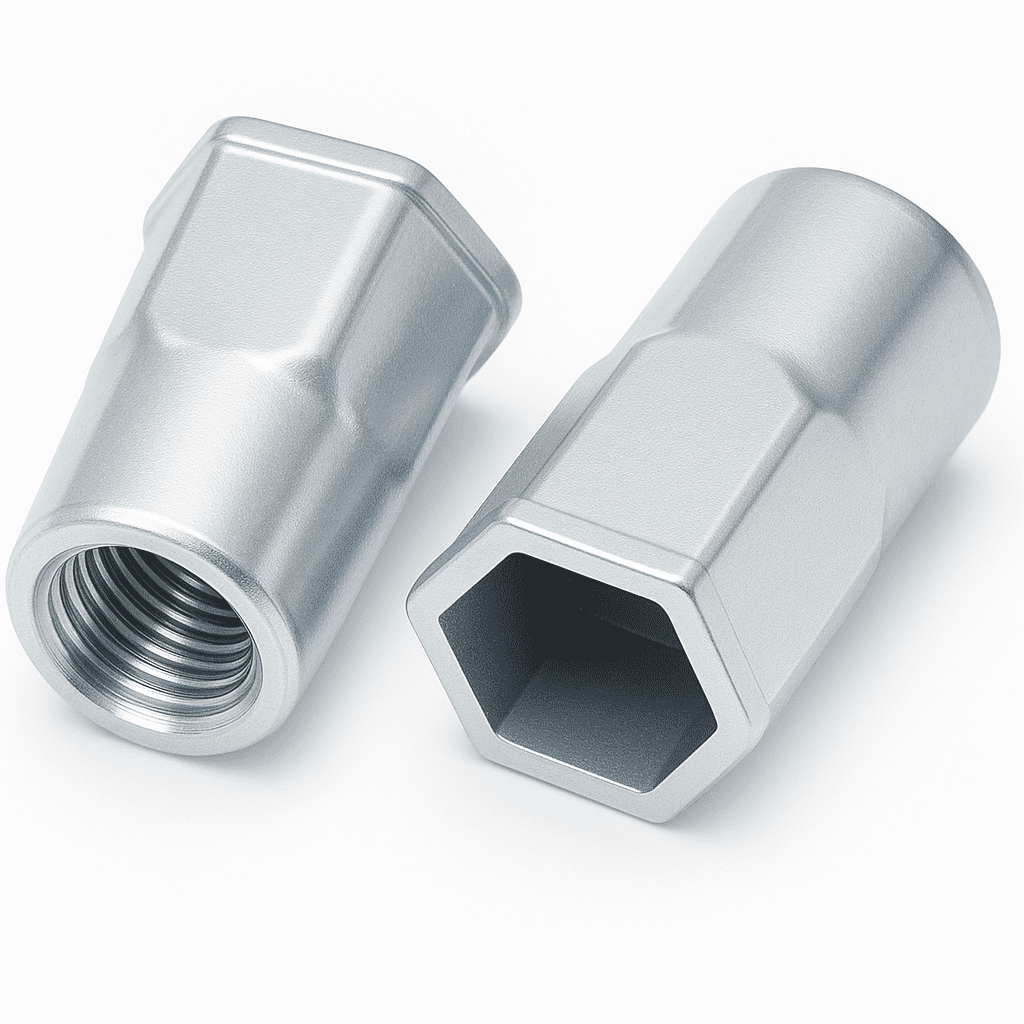

M5 x 13.0mm Steel Reduced Head, Half Hexagon Open End Body Rivet Nuts, Grip range 0.5 – 2.5mm, Hole Size 7.1mm
£0.04 - £0.06
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 51076.050.001
Thread pitch: 0.8mm
Body Width (across flats): 6.95mm
Head Width (across flats): 8.0mm
Head Height: 0.5mm
Available
Sizes are displayed as thread size x initial length.
For optimal performance, the hole diameter should be 0.1 mm bigger than the rivet nut body.
Sizes are displayed as thread size x initial length.
known additionally as reduced head rivet nuts
grip size: Minimum and maximum allowable material thicknesses for the nut
