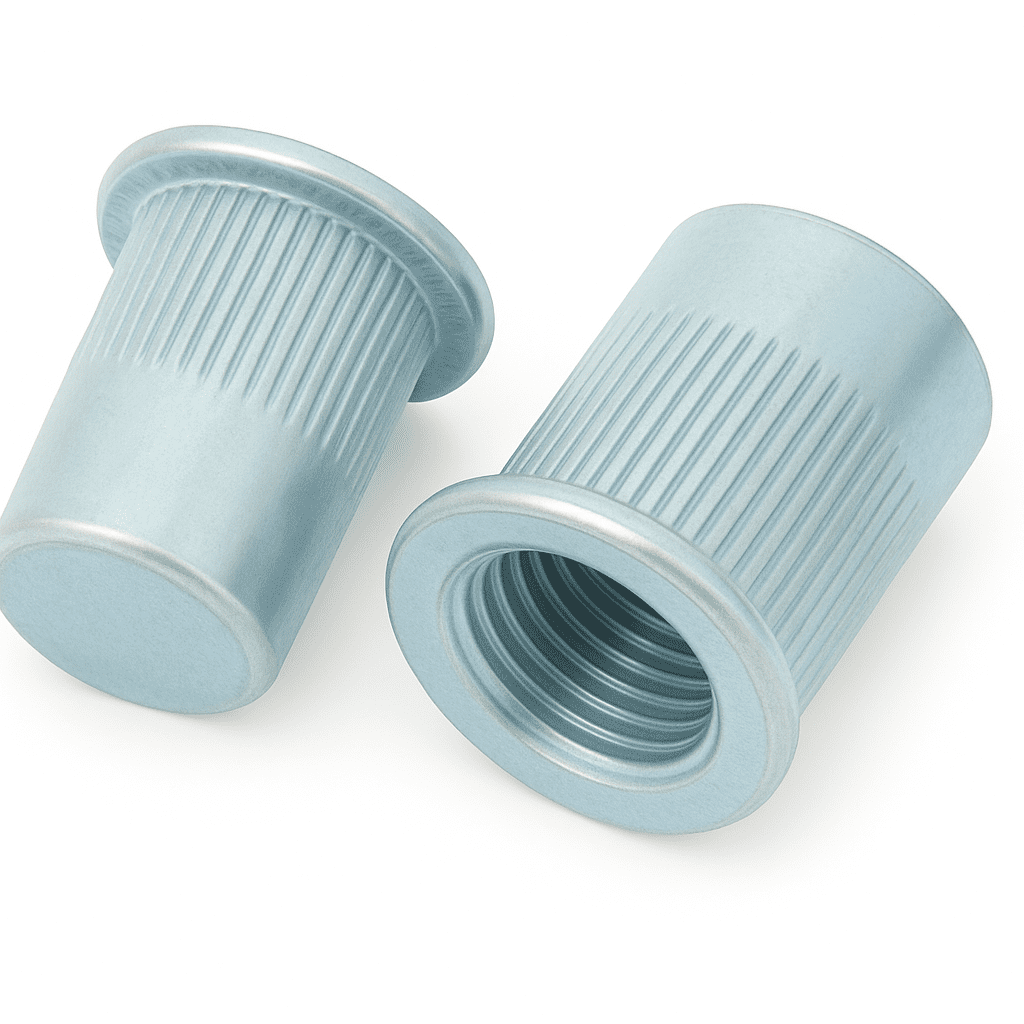

M3 x 15.0mm Steel Grooved Flat Head, Round Closed End Rivet Nut, Grip range 0.5 – 1.5mm, Hole Size 5.1mm
£0.07 - £0.10
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 54040.300.001
Grip Range: 0.5 – 1.5mm
Internal thread size: M3 x 0.5mm pitch
Drill/hole diameter: 5.1mm
Body Diameter: 5mm
Head Diameter: 8mm
Head Height: 1.5mm
Available
Steel Grooved Large Head Closed End Rivet Nut
Large flange can be used as a spacer and strengthens the hole in thin materials.
When setting to grab the substrate, the grooved body expands radially.
increased turning resistance, especially for thin and delicate materials
Increased pull-out resistance due to flange head
Zinc-plated steel with a steel body
Suitable in drilled or punched holes
Sizes are displayed as thread size x original length.
The hole’s diameter should be 0.1 mm greater than the rivet nut’s body for optimal results. Grip range = total sheet thickness
