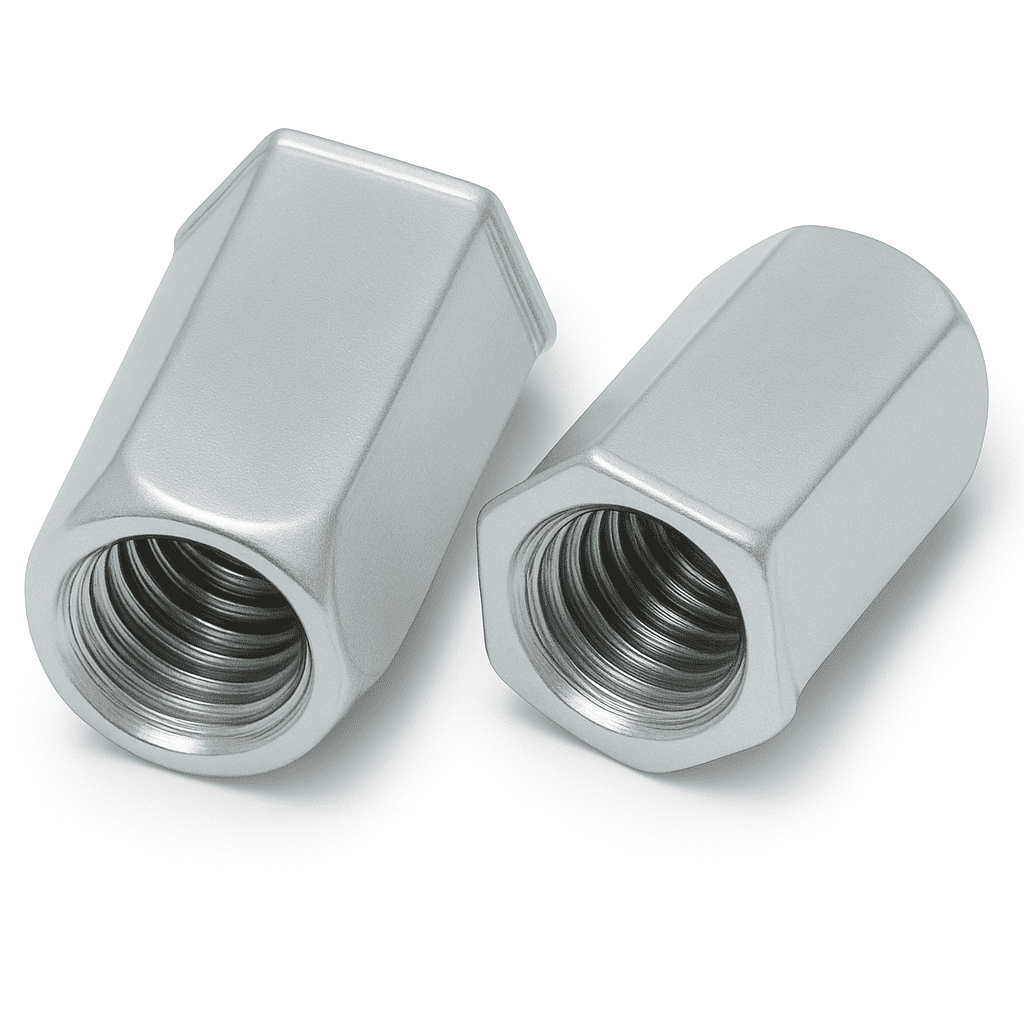

M10 x 23.5mm Steel Reduced Head, Full Hexagon Open End Body Rivet Nuts, Grip range 3.5 – 6.0mm
£0.12 - £0.18
Excluding VAT (If price is per 100, you can still order any quantity)
SKU: 51077.010.002
Thread pitch: 1.5mm
Body Width (across flats): 12.9mm
Head Width (across flats): 14.5mm
Head Height: 1.0mm
Available
Steel, zinc plated
Sizes shown are thread size x original length
For best results, hole diameter should be 0.1mm larger than rivet nut body
Also known as reduced head rivet nuts
Grip range: Minimum and maximum material thickness into which the nut can be set
