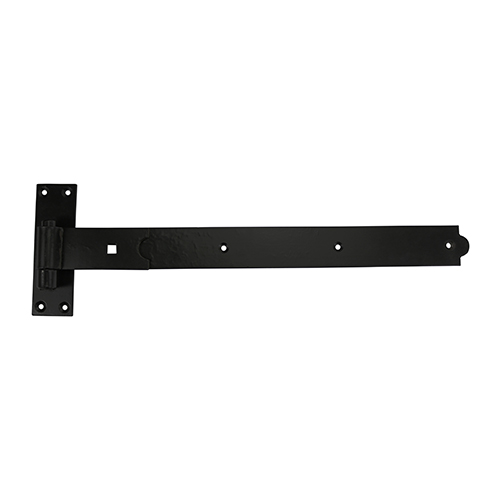

600mm Pair of Straight Band & Hook On Plates – Black (Pack of 2)

£30.22 - £37.77

Excluding VAT

SKU: HBS600B

  • The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBS600B
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 14)
Carriage Bolt Size (mm) M10 x 100
No. of Nuts 2
Pin Ø (inch) 58
Pin Ø (mm) 16
Washer Type Form A
Band L (mm) 600
Nut Type Hex Full
Packs per Carton 5 Pairs
CSK Screw Size (mm) 6.0 x 40
No. of Washers 2
Pack Type Plain Bag
Band W (mm) 50
Number of Screw Holes 14
Material Carbon Steel
Finish Epoxy Black
Band L (inch) 24
Type Straight
Nut Size (mm) M10
Hook Plate Size L x W (mm) 160 x 50
MOQ 1
To Suit Gate W (mm) 1200 – 1800
Pack Qty 2
To Fit Carriage Bolt Ø (mm) M10
Pack Dimensions L x W x H (mm) 178 x 30 x 610
Number of Bolt Holes 2
Band T (mm) 5.4
Pack Weight (kg) 4.05
MOQ Increment 1
Washer Size (mm) M10
