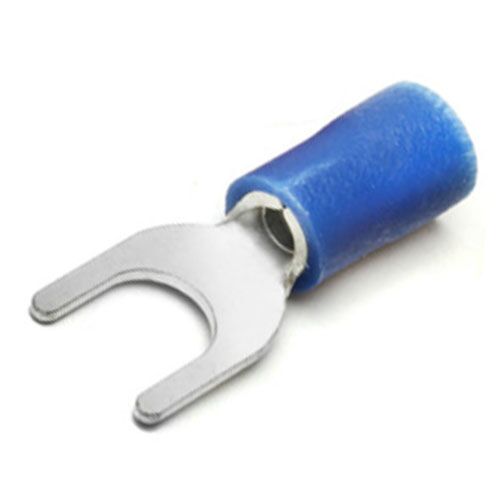

5mm Pre-Insulated Crimp Terminals Fork – Blue
£0.03
Excluding VAT
SKU: T2F5
Threaded stud sizes: M5, #10 UNC/UNF, 2BA
Please view the alternative image for key to dimensions
d2 = 5.3mm, B = 8.5mm, L = 22.0mm, F = 7.3mm
E = 10.0mm, D = 4.5mm, d1 = 2.3mm
Material (Insulation) Vinyl
Material (Terminal) Copper
Material (Plating) Tin
Maximum Temperature 75oC
ROHS Compliant Yes
Available
Copper terminals, with tin plating for maximum conductivity and corrosion resistance
Tapered easy-entry sleeve ensures reliable conductor insertion
PVC insulation rated to 600v maximum
Maximum operating temperature 75°C
ROHS Compliant
Material (Insulation) Vinyl
Material (Terminal) Copper
Material (Plating) Tin
Maximum Temperature 75oC
ROHS Compliant Yes
