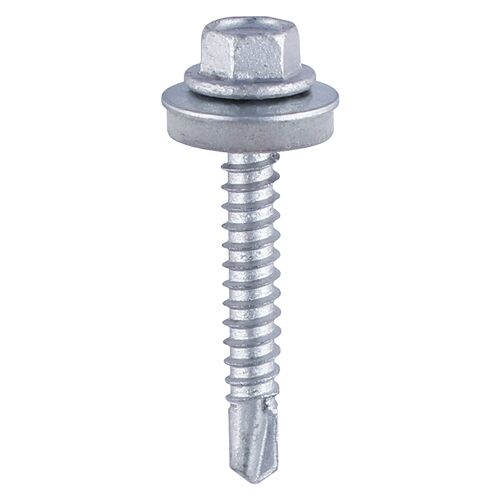

5.5 x 80mm Hexagon Self-Drilling Tek Screws Heavy Section Steel Zinc (with 16mm EPDM Washer) For 3.0-12.5mm Steel Thickness
£0.13 - £0.17
Excluding VAT
SKU: 83001.055.080
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole
Standard 8mm (5/16″) AF hexagon drive
Use with Heavy Section 3.0 – 12.5mm steel
Carbon steel zinc plated with super hard and sharp drill tip
With 16mm Bonded EPDM Washer for weather protection
Thread length does not include screw head
Available
Product Code: ZH80W16B
Size (mm) | 5.5 x 80 |
Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
MDT (mm) | 12 |
FW Ø (mm) | 12 |
Substrates | Steel |
Salt Spray Resistance (Hrs) Tested to BS EN 9227 | 48 |
Point Type | Self-Drilling No.5 |
Material | Case & Core Hardened Carbon Steel |
Socket Size (mm) | 8 |
Head Type | Hex |
Finish | Zinc |
Approval | BS EN 10666 (DIN 7504) |
Type | For Heavy Section Steel |
EPDM Washer (mm) | 16 |
Effective Thread L (mm) | 53 *P/T |
Thread Type | *P/T = Partially Threaded, Metric with V Flutes & Torque Relieving Slash |
