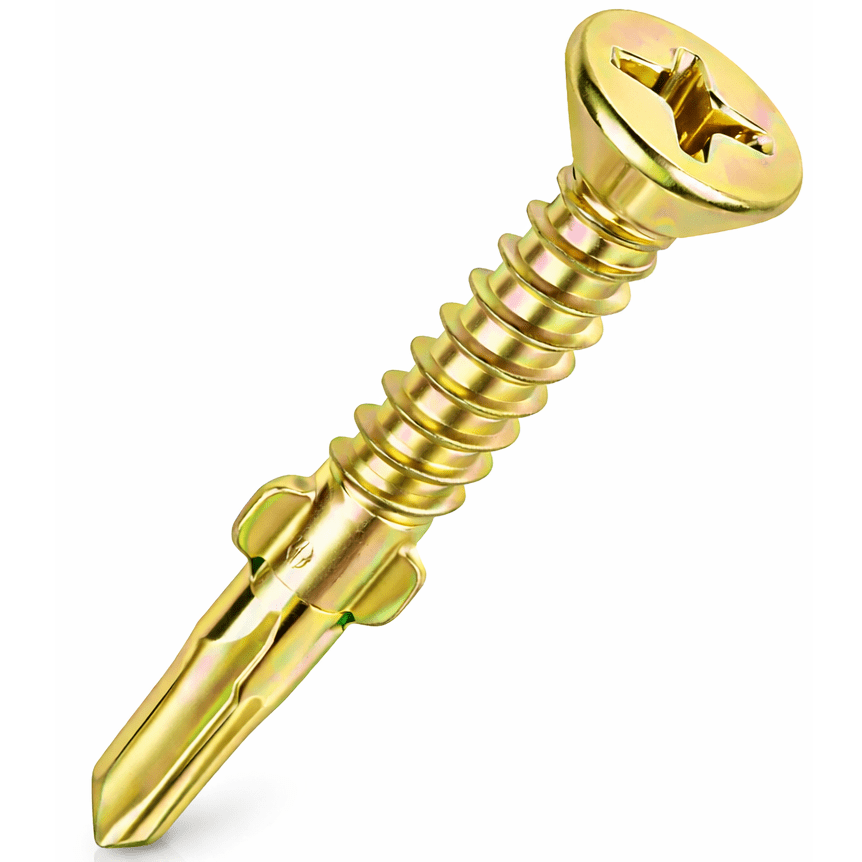

5.5 x 65mm Self Drill Phillips Countersunk Wing-Tip Screw – Metal Construction Timber to Heavy Section Screws – Yellow Zinc Plated

£0.18 - £0.21

Excluding VAT

SKU: 72132.505.065

Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.



Quantity Price
1 - 99
100 - 499


Point Type Self-Drilling No.5
MDT (mm) 12
Head H (mm) 5
Thread ? (mm) 5.5
Pack Type Box
Drill Tip L (mm) 25
Approval BS EN 10666 (DIN 7504)
Finish Yellow Zinc
L (mm) 65
To Suit Timber (mm) 14 – 29
Thread Type Metric
Corrosion Rating (1-5) 1 – Clean, dry & low humidity environments
Rec. RPM 1,000 – 1,800
Included Items PH3 S2 Bit (Qty 1)
Head ? (mm) 11
Steel & Fixture Thickness (mm) 35
Material Case & Core Hardened Carbon Steel
Substrates Steel, Timber
Type For Timber to Heavy Section Steel
Effective Thread L (mm) 31
Recess Type Phillips
Driver Bit Size PH3
Size (mm) 5.5 x 65
Head Type Countersunk with Ribs
Thread Coverage Fully Threaded
