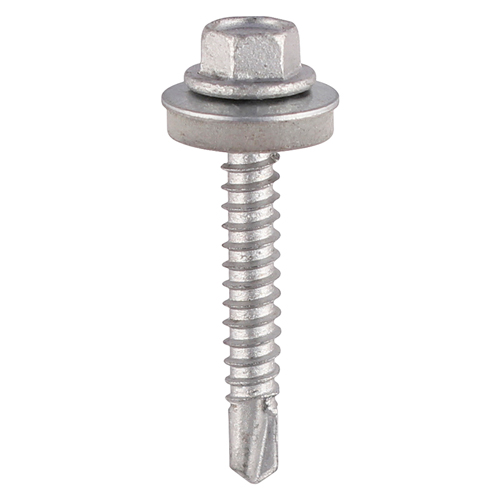

5.5 x 38mm Hexagon Self-Drilling Screws – Light Section Steel – (with 16mm EPDM Washer) – Bi-Metal Exterior – For 1.2-5.0mm Steel Thickness00)
£0.52 - £0.65
Excluding VAT
SKU: 60144.505.038
Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
• Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
Available
Thread Type | 60° Self-Tapping |
Corrosion Rating (1-5) | 4 – Urban & industrial areas with a moderate salt atmosphere |
Effective Thread L (mm) | 22 |
Drill Tip L (mm) | 8.5 |
Socket Size (mm) | 8 |
Substrates | Steel |
Included Items | 16mm EPDM Washers |
Point Type | Self-Drilling No.3 |
Material | Bi-Metal/A2-304 Stainless Steel/Carbon Steel |
Head Type | Hex |
Size (mm) | 5.5 x 38 |
EPDM Washer (mm) | 16 |
Finish | Exterior (Silver Organic) |
Type | For Light Section Steel |
FW Ø (mm) | 11 |
Pack Weight (kg) | 0.77 |
Head H (mm) | 5.3 |
MDT (mm) | 5 |
Thread Coverage | Fully Threaded |
