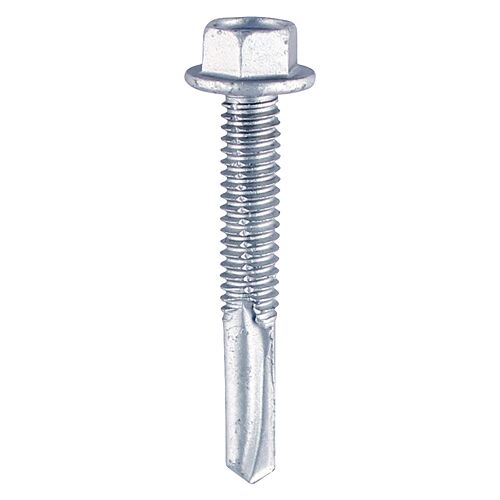

5.5 x 32mm Metal Construction Heavy Section Screws – Hex – Self-Drilling – Zinc
£0.06 - £0.07
Excluding VAT
SKU: 60139.505.032
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
Available
Pack Type | Box |
Material | Case & Core Hardened Carbon Steel |
Effective Thread L (mm) | 13 |
Thread Type | Metric with V Flutes & Torque Relieving Slash |
Type | For Heavy Section Steel |
Head Type | Hex |
Head H (mm) | 5.6 |
Approval | BS EN 10666 (DIN 7504) |
Substrates | Steel |
Pack Weight (kg) | 0.587 |
Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
Socket Size (mm) | 8 |
FW Ø (mm) | 12 |
Finish | Zinc |
Drill Tip L (mm) | 15 |
Size (mm) | 5.5 x 32 |
MDT (mm) | 12 |
Point Type | Self-Drilling No.5 |
Thread Coverage | Fully Threaded |
