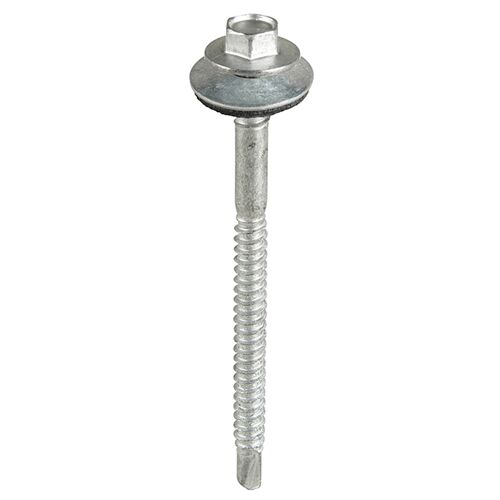

5.5/6.3 x 100mm Composite Panel Screws – Light Section Steel with 16mm EPDM Washer – Self-Drilling – (Bi-Metal – Silver Organic)
£1.05 - £1.32
Excluding VAT
SKU: 60149.505.100
Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
• Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
Available
Material | Bi-Metal/A2-304 Stainless Steel/Carbon Steel |
FW Ø (mm) | 12 |
MDT (mm) | 5 |
Effective Thread L (mm) | 47 |
EPDM Washer (mm) | 16 |
Thread Type | Dual 60° Self-Tapping |
Point Type | Self-Drilling No.3 |
Corrosion Rating (1-5) | 4 – Urban & industrial areas with a moderate salt atmosphere |
Type | For Light Section Composite Panel |
Included Items | 16mm EPDM Washers |
Finish | Exterior (Silver Organic) |
Head Type | Hex |
Socket Size (mm) | 8 |
Size (mm) | 5.5/6.3 x 100 |
Drill Tip L (mm) | 8.5 |
Head H (mm) | 5.3 |
Min. – Max. PT (mm) | 50 – 80 |
Substrates | Composite Panel |
Thread Coverage | Partially Threaded |
