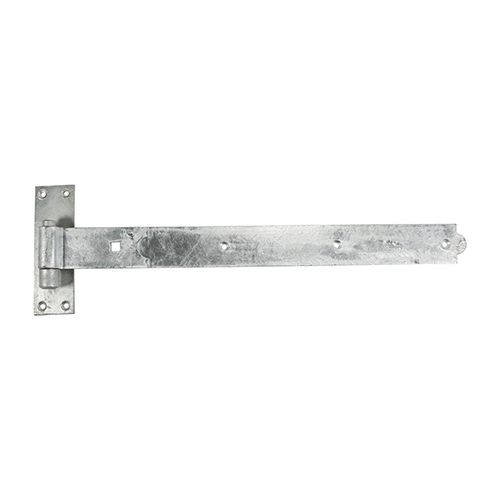

450mm Pair of Straight Band & Hook On Plates – Hot Dipped Galvanised (Pack of 2)

£21.66 - £27.07

Excluding VAT

SKU: HBS450G

  • The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
COC

Available

Quantity Price
1 - 9
10 - 29
30+
x

Product Code: HBS450G
Number of Bolt Holes 2
Nut Size (mm) M10
Hook Plate Size L x W (mm) 160 x 50
Type Straight
Material Carbon Steel
To Suit Gate W (mm) 900 – 1350
Number of Screw Holes 14
MOQ Increment 1
To Fit Carriage Bolt Ø (mm) M10
Washer Size (mm) M10
Pack Weight (kg) 2.93
No. of Washers 2
Pack Type Plain Bag
Band T (mm) 4.8
MOQ 1
CSK Screw Size (mm) 6.0 x 40
Pack Dimensions L x W x H (mm) 152 x 30 x 609
Washer Type Form A
Pack Qty 2
Band L (inch) 18
Finish Hot Dipped Galvanised
Pin Ø (mm) 16
Carriage Bolt Size (mm) M10 x 100
Pin Ø (inch) 58
Band L (mm) 450
Packs per Carton 5 Pairs
Included Items M10 x 100mm Carriage Bolts (Qty 2)
M10 Hex Full Nuts (Qty 2)
M10 Form A Washers (Qty 2)
6.0 x 40mm Countersunk Screws (Qty 14)
Band W (mm) 50
Nut Type Hex Full
No. of Nuts 2
